Arrow boards are essential tools for traffic management, providing clear and visible signals to control and direct the flow of vehicles around convoys, crash-cushion (TMA) trucks, and emergency repair crews. They are typically mounted on trucks or trailers. These boards are equipped with bright LED lights that can display a dozen patterns, including directional arrows, to communicate effectively with drivers. They are designed to be durable, weather-resistant, and easy to operate.

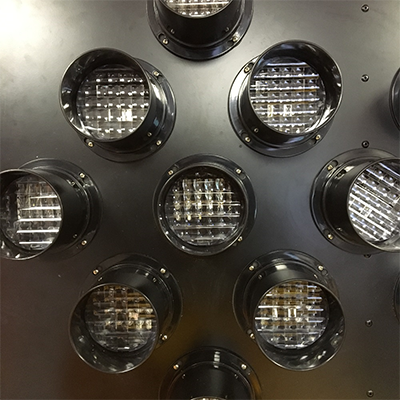

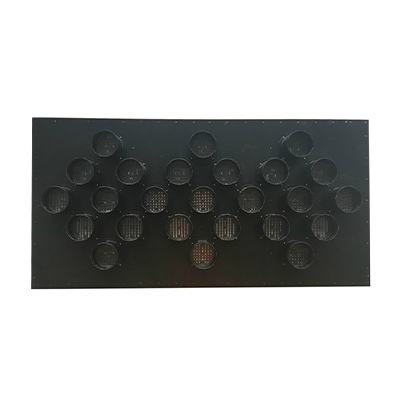

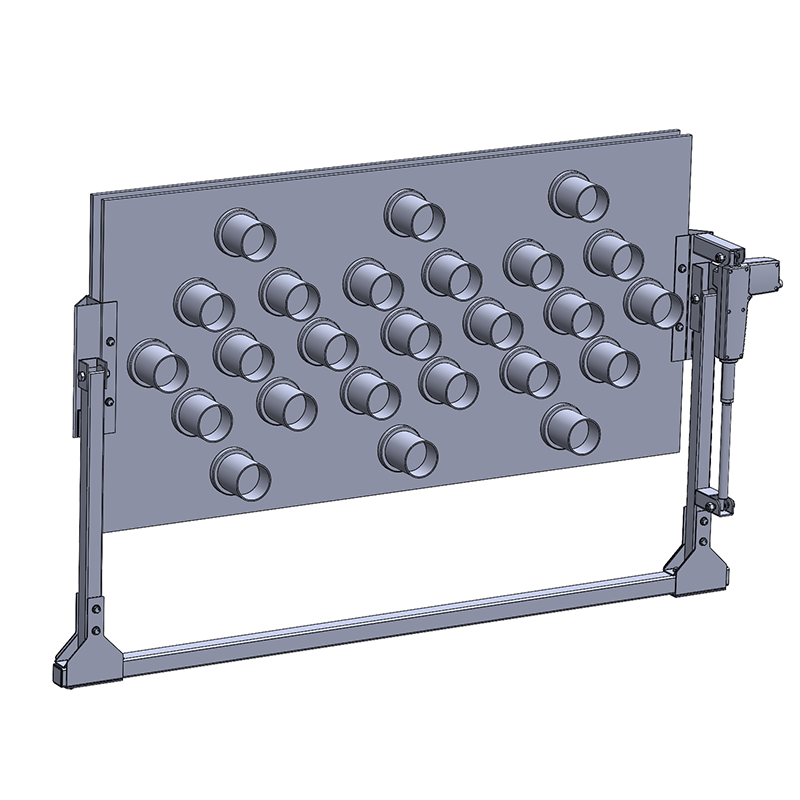

This arrow board stands out with its lightweight, high-profile design, providing a high level of visibility when installed on a truck or trailer. It features a unique Wi-Fi system that connects the controller to the arrow board without the need for complex wire installation. The board is equipped with 25 PAR36 bulbs, each containing 50 bright LEDs that emit a high output of bright amber light. Includes an auto-dimming feature that uses a photoelectric cell to modify brightness throughout the day and in different weather conditions, ensuring your directional signboard is always easy to read. The user-friendly digital display arrow board controller box, typically installed inside the cab, operates the arrow board display and electrically controlled tilt-frames. The controller is powered by a lithium-ion battery and can be charged from the vehicle’s auxiliary power outlet.
Assembly and installation instructions are available below. These instructions are for installing the system on a mobile vehicle. The installer is required to have a good working knowledge of vehicle electrical systems and the ability to work safely on such a system. Please read instructions carefully before purchasing to ensure this product is appropriate for your needs.
| Board width | 60" |
| Board height | 30" |
| Weight | 72 lbs. |
| Material (frame) | steel |
| Material (light housing) | aluminum |
| LED lights | 25 PAR36 bulbs |
| Light color | amber |
| Modes | 12 function features |
| Controller battery | lithium-ion |
| Flashing Patterns | ||
|---|---|---|
| Mode | Pulse | |
| 1-2 |  | Flashing arrow left or right |
| 3 |  | Flashing double arrow |
| 4 |  | Flashing corner caution |
| 5 |  | Flashing caution bar |
| Sequential Patterns | ||||
|---|---|---|---|---|
| Mode | Pulse 1 | Pulse 2 | Pulse 3 | |
| 6-7 |  |  |  | Sequential stem arrow left or right |
| 8-9 |  |  |  | Sequential arrow left or right |
| 10-11 |  |  |  | Sequential chevron arrow left or right |
| 12 |  |  | Alternating Diamonds |
| Arrow Board Replacement Part | Part Number |
|---|---|

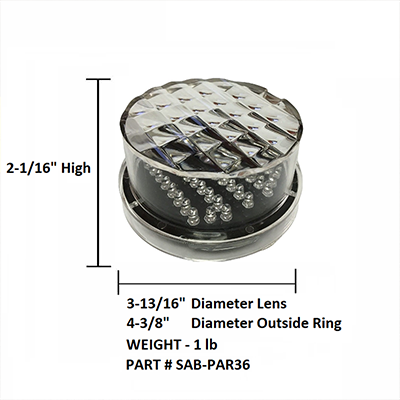

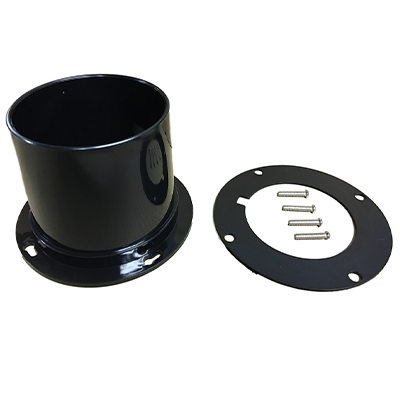

| Amber Replacement Light Bulb (PAR36) | SAB-PAR36 |
| Amber Replacement Light Bulb (PAR46) | SAB-PAR46 |
| Arrow Board Replacement Hood Cover (PAR36) | SAB-LC36 |
| Arrow Board Replacement Hood Cover (PAR46) | SAB-LC46 |
| Low Mount Frame Kit - 30" x 60" | SAB-LM-FRAME-KIT |
| High Mount Frame Kit - 30" x 60" | SAB-HM-FRAME-KIT |

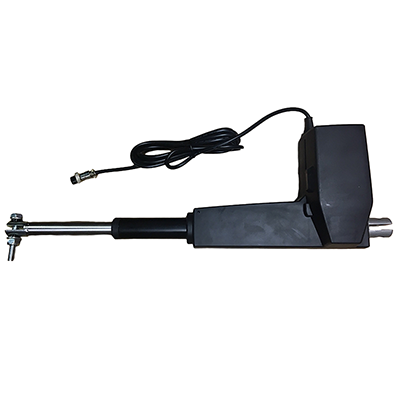

| 8" 12V Actuator | SAB-ACTUATOR |
| Controller Box Cover Plate, Touch Pad, PCB Board | SAB-CB-COVER |
| Controller Box Power Cord 12V DC | SAB-CB-POWERCORD |

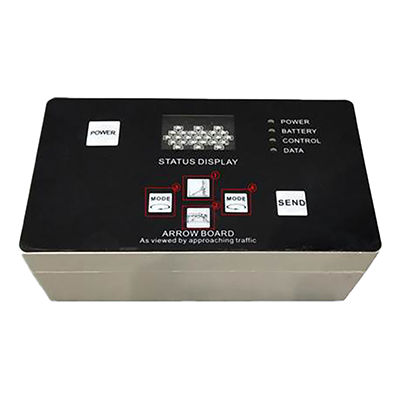

| 25 Light Wi-Fi Controller Box | SAB-CB-WIFI |
| Wi-Fi Motherboard | SAB-WIFI-MB |
| Arrow Board |  High-Mount LED Arrow Board |
 Low-Profile Mount LED Arrow Board |
 Non-Mounted LED Arrow Board |
 Low-Profile Mount LED Arrow Board |
 Non-Mounted LED Arrow Board |
| Model Number | SAB-HM-3060-25P36 | SAB-LM-3060-25P36 | SAB-NM-3060-25P36 | SAB-LM-3672-25P46 | SAB-NM-4896-25P46 |
| Weight | 72 lbs. | 72 lbs. | 49 lbs. | 100 lbs. | 112 lbs. |
| Mount frame | high | low | none | low | none |
| Board width | 60" | 72" | 96" | ||
| Board height | 30" | 36" | 48" | ||
| Bulb size | PAR36 | PAR46 | |||
| Bulbs | 25 PAR36 (50 bright LEDs per bulb) | 25 PAR46 (40 bright LEDs per bulb) | |||
| Controller | Wi-Fi controller | ||||
| Material (frame) | steel | ||||
| Material (light housing) | aluminum | ||||
| LED color | amber | ||||
| Light modes | 12 function features | ||||
| Controller battery | lithium-ion |
Arrow Board Assembly and Operating Manual
