X | Down Arrow LED Sign - 22"

X | Down Arrow LED Sign - 22"

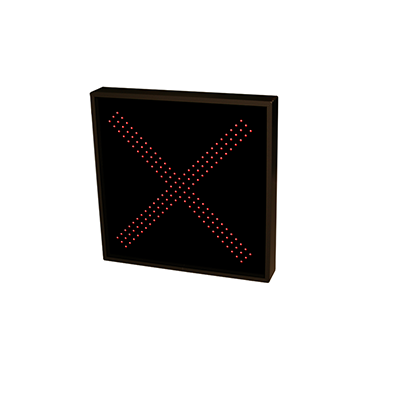

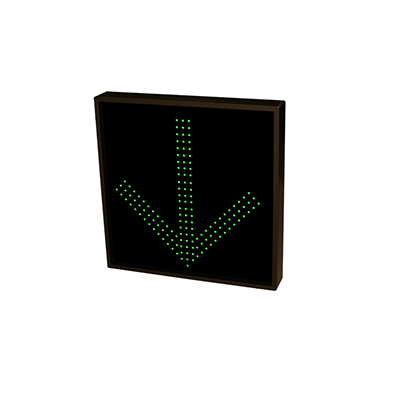

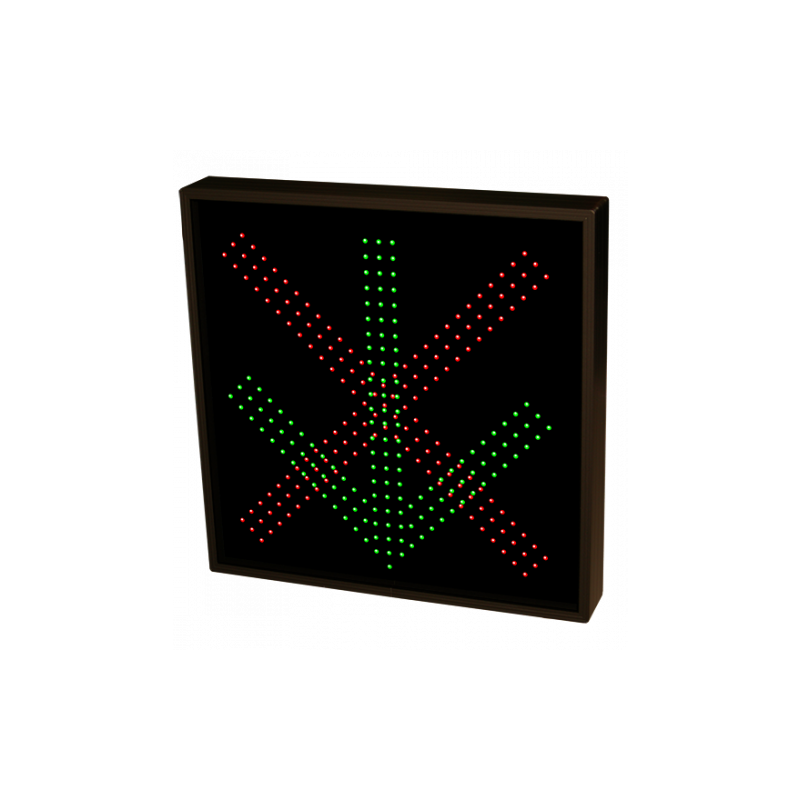

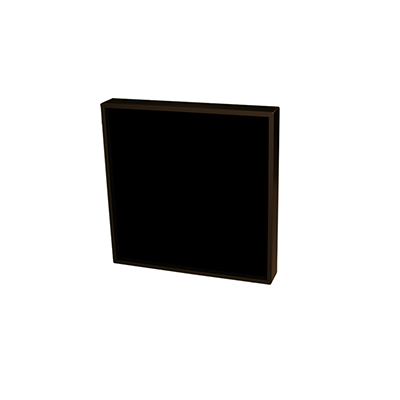

The TCL Series outdoor blank-out LED direct-view signs are designed with super bright LEDs and a contrasting face that is legible in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message when turned on and blank out (or disappear) the message when off. Engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum. Includes the Lift'N Shift back for wall mounting, which eliminates the need to purchase additional brackets because the sign back-panel doubles as the mounting plate.

Features:

• LED message is readable in direct sunlight.
• Wide-angle LEDs for maximum visibility.
• Corrosion-resistant all-weather cabinet.
• Housing can be used for surface mounting.
• 5-year warranty.
• UL/cUL Listed for wet locations.
• Made in the USA.

Specifications:

• Overall dimensions: 22" H x 22" W x 2.5" D
• Illumination: LED direct-view
• Input voltage: 120-277 VAC
• Finish: Duranodic Bronze
• Weight: 13.5 lbs.
• LED color: red and green
• Message: X | Down Arrow LED Sign
• Character height: X is 17.5", down arrow is 18.25"
• Cabinet material: one-piece extruded aluminum frame
• Face material: 1/8" thick smoked polycarbonate
• Manufacturer model number: TCL2222RG-175TS

Optional Accessories:

Resources:

5 Year Manufacturer Warranty:

Manufacturer warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of manufacturer, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
