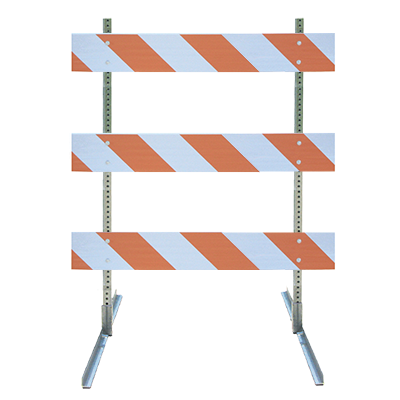

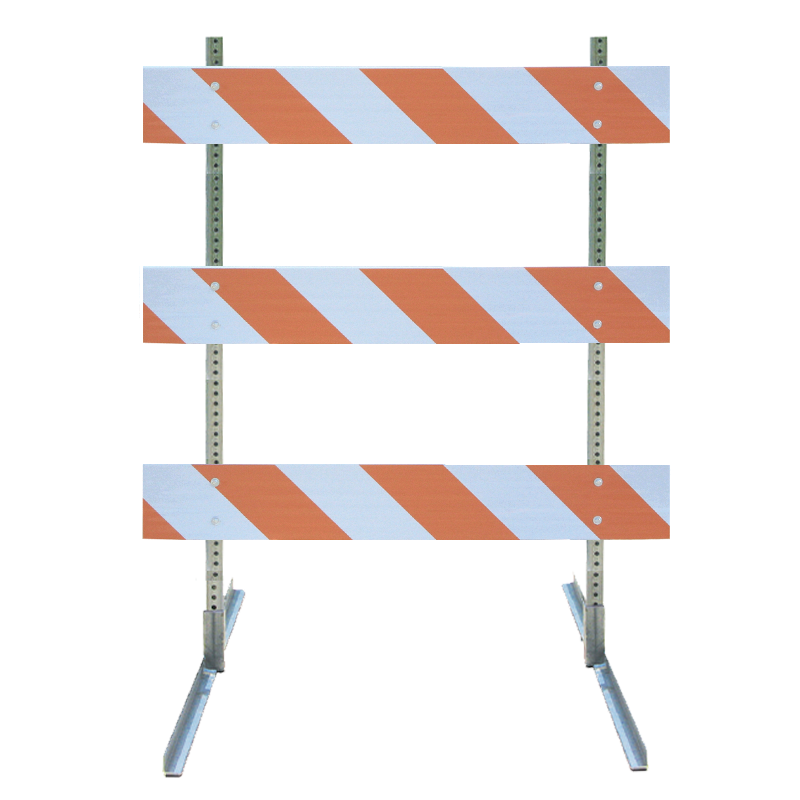

Type III Barricade Kit (Angle Iron Feet & Steel Uprights) - 4' Boards

Type III Barricade Kit (Angle Iron Feet & Steel Uprights) - 4' Boards

Angle iron feet and steel uprights type III barricades are easy to assemble. Ideal for detours and closing and other types of traffic control. The steel uprights are galvanized for superior corrosion protection. The square shape provides superior wind load capabilities for better stability. The reflective orange and white stripes from the power boards ensure visibility from far away and help protect vehicles and pedestrians.

Kit Includes:

• Two 14-gauge square steel tube posts.
• Two 10-gauge angle iron feet.
• Three Power Boards available in various sizes, sheeting grades and designs.
• Assembly hardware.

Features:

• The square shaped steel posts provide superior wind load capabilities and inhibits warping.
• Angle iron feet offer a more economical option compared to steel.
• Eliminate broken boards with all-plastic boards that never rust, rot, chip, fade, splinter, or need painting.
• Boards feature a hollow core extruded design with internal walls to provide lightweight strength and durability.
• Flat-surfaced boards accept retroreflective sheeting.
• Stripes on sheeting are 6" wide. Produced with right diagonal sheeting when only one side is sheeted. When two sides are sheeted, one side is left diagonal while the other is right diagonal.
• Reinforced bolt/rivet holes in boards.
• Each upright accepts a barricade light (sold separately) for extra visibility.
• Meets MUTCD Standards.
• Made in USA.

Options:

• Boards can be sheeted on one side or both sides using 3M striped sheeting in Engineer Grade (visible up to 500 ft.), High Intensity Prismatic (visible up to 1000 ft.), or Diamond Grade (visible up to 1500 ft.) call to quote Diamond Grade option.
• Available in 4ft., 6 ft., 8 ft., and 10 ft. board lengths.
• Each upright accepts a Barricade Light.

Specifications:

Resources:
