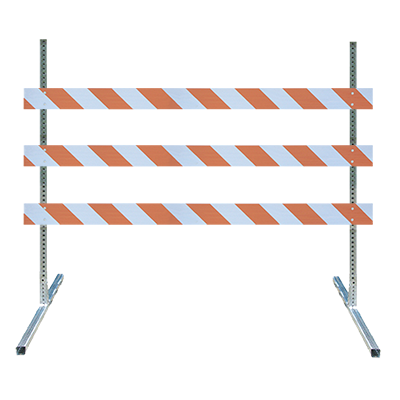

Type III Barricade Kit (Square Steel Feet & Uprights) - 10' Boards

Type III Barricade Kit (Square Steel Feet & Uprights) - 10' Boards

Square steel feet and uprights are galvanized for superior corrosion protection. The square shape provides superior wind load capabilities for better stability. The reflective orange and white stripes from the power boards ensure visibility from far away and help protect vehicles and pedestrians.

Features:

• The square shape steel provides superior wind load capabilities and inhibits warping.
• 14 gauge hot rolled high carbon steel for durability.
• Predrilled universal mounting holes.
• Eliminate broken boards with all-plastic boards that never rust, rot, chip, fade, splinter, or need painting.
• Boards feature a hollow core extruded design with internal walls to provide lightweight strength and durability.
• Flat-surfaced boards accept retroreflective sheeting.
• Stripes on sheeting are 6" wide.
• Produced with right diagonal sheeting when only one side is sheeted.
• When two sides are sheeted, one side is left diagonal while the other is right diagonal.
• Accepts two flashing barricade lights (sold separately).
• Quick removal of uprights from feet for short term or permanent placement.
• Meets MUTCD Standards.
• Made in USA.

Options:

• Boards can be sheeted on one side or both sides using 3M striped sheeting in Engineer Grade (visible up to 500 ft.), High Intensity Prismatic (visible up to 1000 ft.), or Diamond Grade (visible up to 1500 ft.).
• Available in 4ft., 6 ft., 8 ft., and 10 ft. board lengths.
• Each upright accepts a Barricade Light.

Kit Includes:

• Two 14-gauge square steel tube posts.
• Two 14-gauge square steel tube feet.
• Three Power Boards available in various sizes, sheeting grades and designs.
• Assembly hardware.
