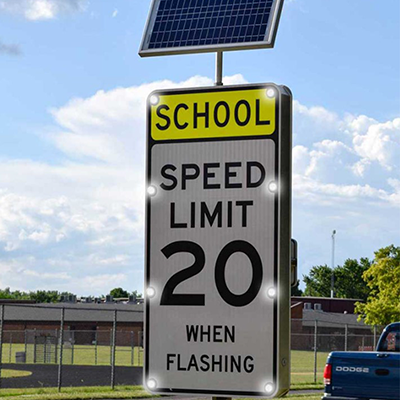

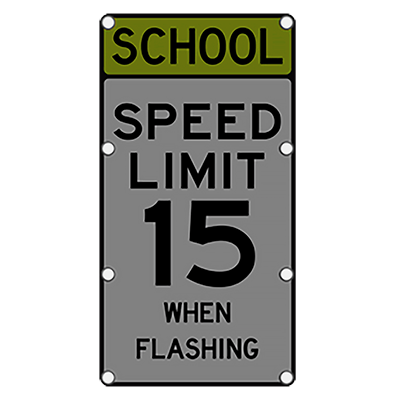

Solar Powered Flashing LED School Speed Limit Sign

Solar Powered Flashing LED School Speed Limit Sign

This flashing LED School Speed Limit sign has DG reflective sheeting for maximum visibility, and LED lights extend the range of visibility during both day and night and in all weather conditions. The sign uses innovative LED technology with a series of synchronized high intensity LEDs. The addition of flashing LEDs also increases driver awareness for added safety. The sign conforms to the specifications of the Federal Highway Administration (FHWA) as set forth by the MUTCD.

Features:

• Type IX white reflective sheeting provides outstanding reflective brightness, day or night.
• Visible up to 2 miles away.
• High intensity LEDs extend the visibility of the sign under all weather conditions.
• Solar panel and battery combination offer 24/7 flash.
• Flash rate of 50 to 60 times per minute.
• LED life expectancy of over 100,000 hours.
• Installs on 2” square post (post not included).
• Includes brackets and hardware necessary to mount to a 2" square post.
• Field-replaceable grommet mounted lights.
• Sealed DOT approved lighting.
• Patented reflective LED lighting.
• Highway grade .080 aluminum construction resists corrosion.
• Signs are weatherproof to prevent outside elements from entering the internal casing.
• Fast and easy installation, with minimal maintenance. Installs onto any new or existing signpost (not included).
• Includes 6-volt battery with up to a 2 to 4-year battery life, but replacement after 18 months is recommended.
• MUTCD section 2A.07 and 2A.08 compliant
• MUTCD S5-1 school sign.
• Made in the USA.
• Free shipping!
• No returns or cancellations allowed on this built-to-order product.

Options:

• This sign is configured for solar power. (Do not install where sunlight is blocked by trees, buildings, or other structures.)
• AC power version also available. This option can only be selected at the initial configuration and cannot be changed later in the field. Call for quote (item number 2448ACS51GM).

Signs come standard with continuous 24/7 flash.

Timer & Sensor Options		Description	Item Number
Standard Timer		Timer allows the sign to be programmed to flash at specific times, every day. Example: the sign is timed to flash on at 8 -10 AM and again at 8-10 PM, 7 days per week.	TIMERSTD
Deluxe School Zone Timer		Works as the Standard Timer does but adds the ability to be programmed to have specific days that the sign will not flash. Example: weekends, holidays, late starts, early releases, institute days, and school holidays.	DELUXETIMER
Dusk-To-Dawn Sensor		Sign comes standard with continuous 24/7 flash. Add a Dusk-to-Dawn Sensor, and LEDs will only illuminate from dusk to dawn and not turn on and flash during daylight hours.	DUSKZ

Specifications:

• Sizes: 24” x 48”
• Construction: .080 highway grade aluminum / stainless steel fasteners
• Solar: 15-20 watts polycrystalline solar cell
• Battery: 6 Volt sealed lead acid (SLA) battery included (6V18AH)
• LEDs: six 1¼" G2 reflective LED Lighting on sign perimeter.
• Sheeting: type IX white reflective

Battery:

• 6-volt sealed lead acid (SLA) battery included (6V18AH) when configured as above without accessories.
• Certain accessory options require a 12-volt battery; this will be included in those units if needed. Please be sure to order the correct replacement battery for your unit’s final configuration.
• Up to a 2 to 4-year battery life, but replacement after 18 months is recommended.

Resources:

Warranty:

• 10 Year Solar Collector Panel
• 5 Year Sign Construction
• 2 Year PCB/LED Technology
• 1 Year Battery
