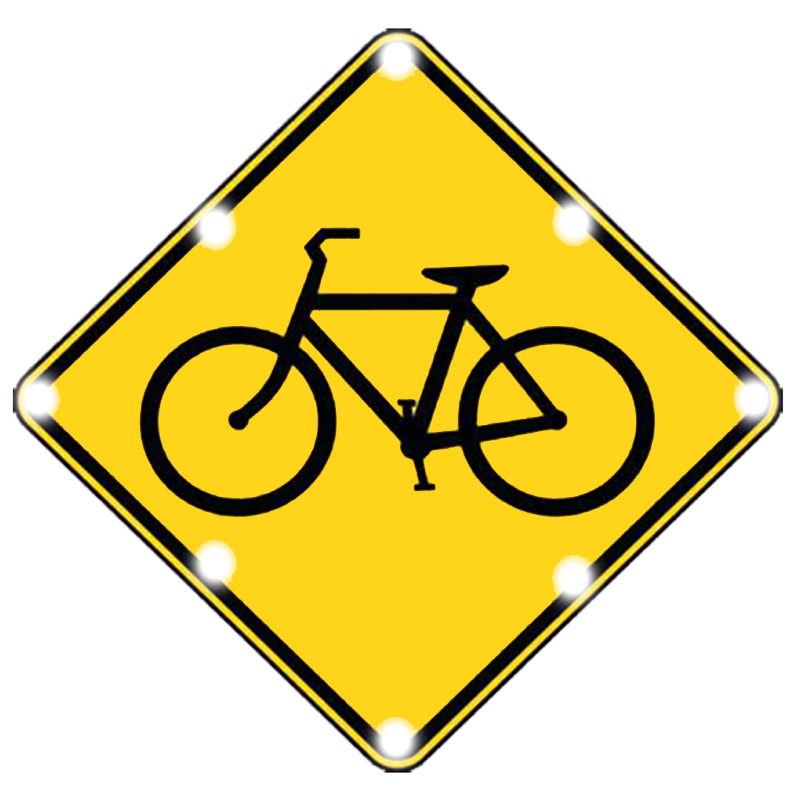

Solar Powered Flashing LED Bicycle Crossing Sign

The bicycle symbol crossing sign provides drivers with an early warning of a potential bicylist crossing ahead. Prepare drivers to slow down and be on the look-out for cyclists entering and exiting the road. Using our innovative LED technology, the system employs a set of eight synchronized high-intensity LEDs. LEDs extend the range of visibility of the sign during the day or night in all weather conditions. Furthermore, driver awareness of the sign increases because the LEDs are flashing. Sign conforms to the specifications of the Federal Highway Administration (FHWA) set forth in the Manual on Uniform Traffic Control Devices (MUTCD).

Features:

Type IX yellow reflective sheeting provides outstanding reflective brightness, day or night.
Visible up to 2 miles away.
High intensity LEDs extend the visibility of the sign under all weather conditions.
Solar panel and battery combination offer 24/7 flash.
Flash rate of 50 to 60 times per minute.
LED life expectancy of over 100,000 hours.
Installs on 2” square post (post not included).
Includes brackets and hardware necessary to mount to a 2" square post.
Field-replaceable grommet mounted lights.
Sealed DOT approved lighting.
Patented reflective LED lighting.
Highway grade .080 aluminum construction resists corrosion.
Signs are weatherproof to prevent outside elements from entering the internal casing.
Fast and easy installation, with minimal maintenance. Installs onto any new or existing signpost (not included).
Includes 6 volt battery with up to a 2 to 4-year battery life, but replacement after 18 months is recommended.
MUTCD section 2A.07 compliant.
MUTCD W11-1 regulatory sign.
Made in the USA.
Free shipping!
No returns or cancellations allowed on this built-to-order product.

Options:

Sizes: 30” x 30” or 36” x 36”
Power Options: This sign is configured for solar power. (Do not install where sunlight is blocked by trees, buildings, or other structures.) AC power version also available. This option can only be selected at the initial configuration and cannot be changed later in the field. Call for quote (item number AW11-1DM).

Accessory Options:

All options can only be selected at the initial configuration and cannot be changed later in the field. Option prices are not included in price shown on this page; call for quote.

Push Button Options:

All push button options utilize the Campbell 4EVR MOAB Button, the toughest button on the market. Note: These push buttons control only one sign. If multiple signs are to be used in concert with one another, additional software option package required. Call for details.

Push Button Options	Description	Item Number
Standard Push Button	Button pushed by pedestrian to make LEDs flash.	BUTTON
Deluxe Push Button	Same as Standard Push Button but adds a 9" x 12" “PUSH BUTTON TO TURN ON WARNING LIGHTS” sign (R10-25).	DELUXE
Confirmation Push Button	Same as Standard Push Button but adds a flashing red LED and an audible “Dee-dah” feedback once button is pushed.	CNFBUTTON
Deluxe Confirmation Button	Same as Confirmation Push Button but adds the same 9” x 12” sign shown above (R10-25).	DELCNFBUTN

Timer/Sensor Options:

Signs come standard with continuous 24/7 flash.

Timer & Sensor Options	Description	Item Number
Standard Timer	Timer allows the sign to be programmed to flash at specific times, every day. Example: the sign is timed to flash on at 8 -10 AM and again at 8-10 PM, 7 days per week.	TIMERSTD
Deluxe School Zone Timer	Works as the Standard Timer does but adds the ability to be programmed to have specific days that the sign will not flash. Example: weekends, holidays, late starts, early releases, institute days, and school holidays.	DELUXETIMER
Dusk-To-Dawn Sensor	Sign comes standard with continuous 24/7 flash. Add a Dusk-to-Dawn Sensor, and LEDs will only illuminate from dusk to dawn and not turn on and flash during daylight hours.	DUSKZ

Specifications:

Construction: .080 highway grade aluminum / stainless steel fasteners
Solar: 15-20 watts polycrystalline solar cell
Battery: 6 Volt sealed lead acid (SLA) battery included (6V18AH)
LEDs: eight 1.25” white G2 LED lights in sign perimeter
Sheeting: Type IX yellow reflective

Battery:

6-volt sealed lead acid (SLA) battery included (6V18AH) when configured as above without accessories.
Certain accessory options require a 12-volt battery; this will be included in those units if needed. Please be sure to order the correct replacement battery for your unit’s final configuration.
Up to a 2 to 4-year battery life, but replacement after 18 months is recommended.
