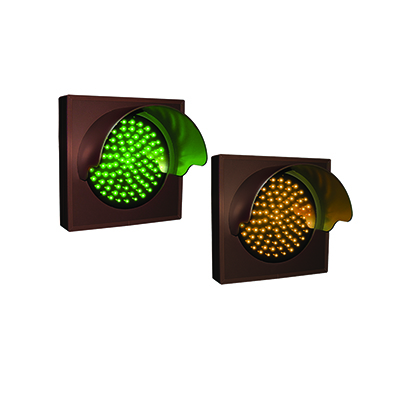

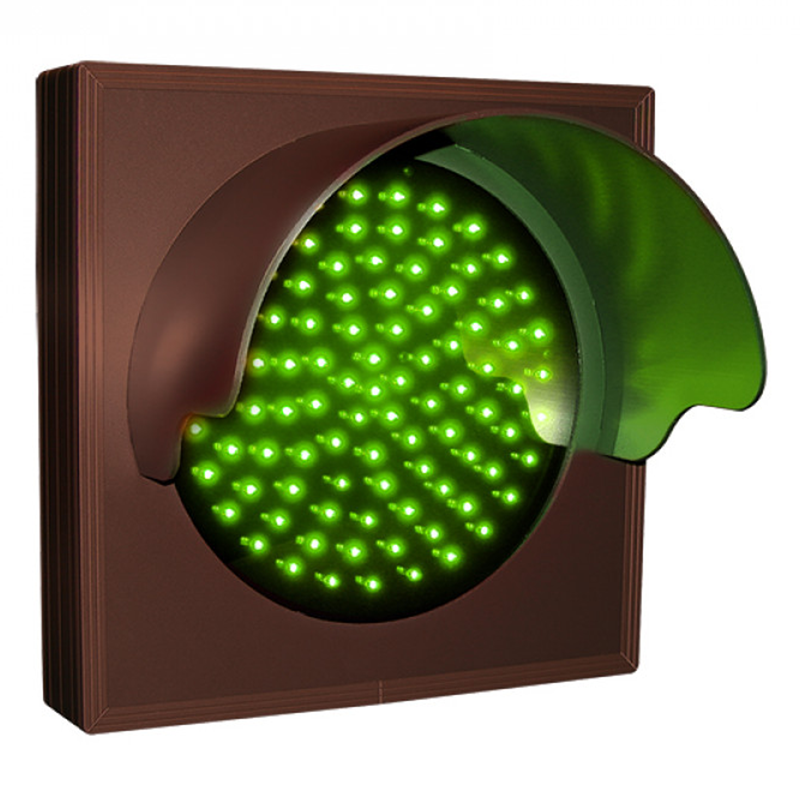

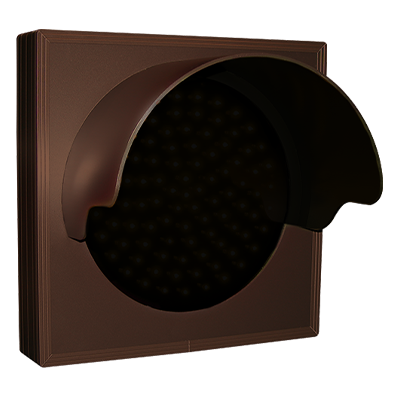

Single LED Traffic Controller

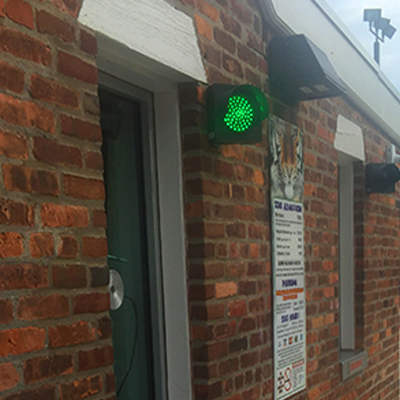

This TCL Series Indicator Dot Single LED Traffic Controller with Hood features a 4 in. diameter light display. Designed for outdoor use, with super bright LEDs that have a contrasting face and are visible in direct sunlight. Ideal for guiding traffic at gated entry/exit points and loading docks. Engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The one-piece cabinet is constructed of corrosion-resistant, extruded aluminum. Includes the Lift'N Shift back for wall mounting, which eliminates the need to purchase additional brackets because the sign back-panel doubles as the mounting plate.
Features:
- Super bright, direct-view, and wide-angle LED lights can be seen even in direct sunlight.
- Lighting is rated for 100,000 hours.
- Corrosion-resistant all-weather housing.
- Housing can be used for surface mounting.
- Impact-resistant sign face.
- Replaceable circuit board assembly.
- 5-year warranty.
- UL/cUL Listed for wet locations.
- Made in the USA.
Specifications:

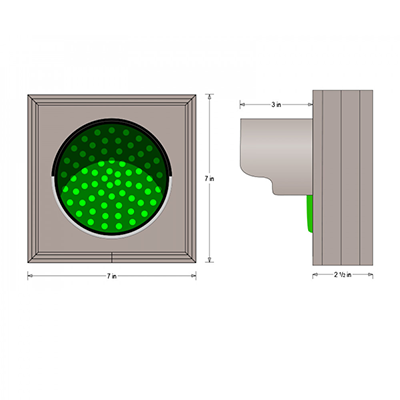

- Dimensions: 7" H x 7" W x 5.5" D (depth includes 2.5" D cabinet & 3" D hood)
- Input voltage: 120-277 VAC
- Cabinet and hoods: 1-piece, 2.5" deep corrosion resistant, extruded aluminum frame
- Face material: injection molded, impact resistant LEXAN™ hood with LEXAN™ lenses
- Faces: single faced sign
- Lens: Amber or Green impact-resistant tinted LEXAN™
- Finish: Duranodic bronze
- Weight: 3 lbs.
- Mounting orientation: vertical
- Manufacturer model number: TCL77A-224H/120-277VAC
Optional Accessories:
Sign can be controlled by a Single Gang Switch (sold separately).
Post for LED Signs (sold separately) secures your LED sign at desired height.
Resources:
6286 Single Hood Green Indicator Dot Specifications
6281 Single Hood Amber Indicator Dot Specifications
LED Traffic Controller Installation & Wiring
LED Traffic Controller Trouble Shooting Guide
5 Year Manufacturer Warranty:
Manufacturer warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of manufacturer, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
