Fixed Pallet Rack Safety Net

Fixed Pallet Rack Safety Net

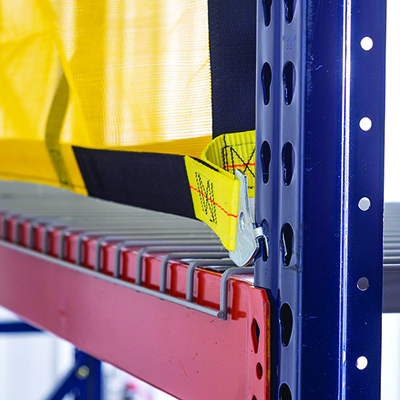

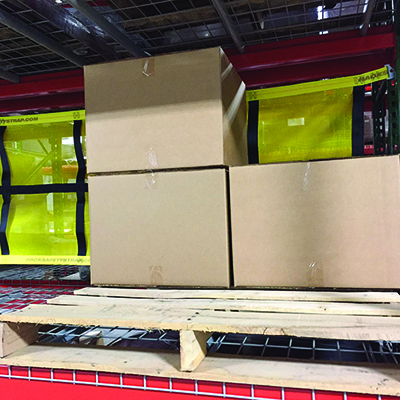

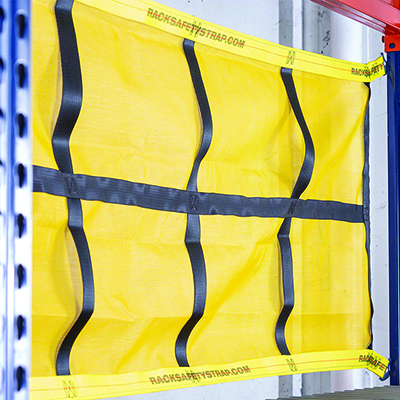

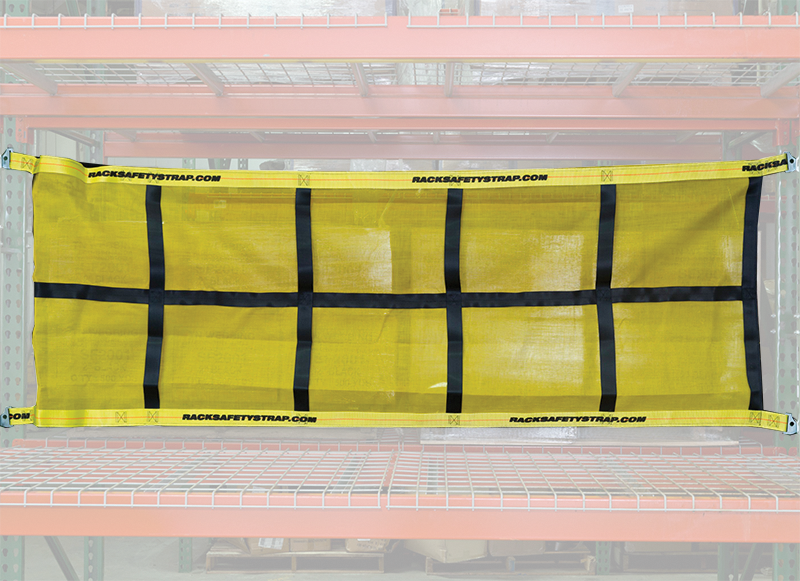

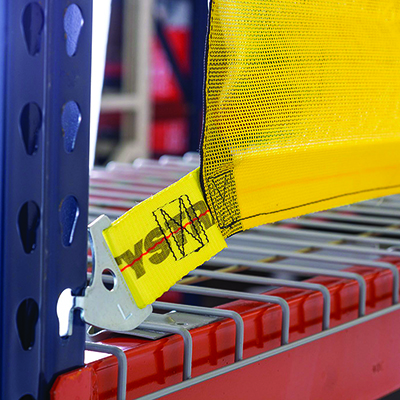

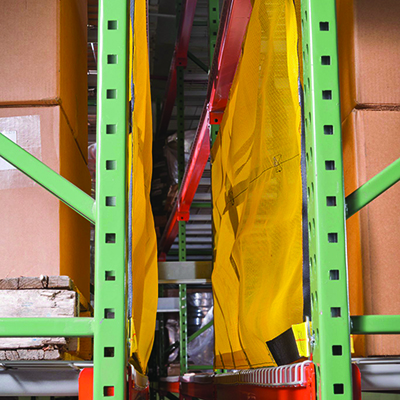

The Fixed Pallet Rack Safety Net keeps loose and palletized items from pushing through into the rack flue space behind your pallet rack. Top and bottom safety straps connect to tear-drop style pallet rack uprights to stretch a bright yellow safety mesh panel across the back of the rack bay opening.

Features:

• Adds a high level of safety and satisfies National Fire Protection Association (NFPA) code 13, by helping keep items from falling into flue space behind pallet rack.
• Super-strong Rack Strap cargo webbing and hardware.
• Rack Safety Net installs into existing racking in seconds with no retrofit needed.
• High visibility yellow for easy safety checks.

Options:

• Available Bay Widths: 8 ft., 8.5 ft., 9 ft., 10 ft., 12 ft.
• Utilize in conjunction with the Sliding Pallet Rack Safety Net, Rack Safety Strap, and/or Modular Pallet Rack Safety Nets for more complete protection.

Specifications:

• Height: All sliding safety nets are 32.5" high
• Straps: 2" wide polyester
• Capacity: 2,400 lbs. burst strength
• Weight: (8 ft.) 4.2 lbs., (8.5 ft.) 4.4 lbs., (9 ft.) 4.7 lbs., (10 ft.) 5.0 lbs., (12 ft.) 5.5 lbs.
• Includes: 1 Net with 2 safety webbing straps and 4 metal rack connectors
• Designed to allow for a 6? overhang to prevent pallet push-through into the longitudinal flue space.

Resources:
