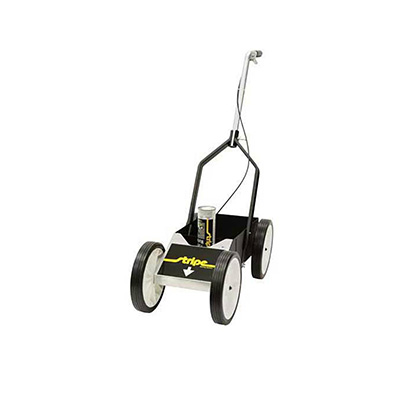

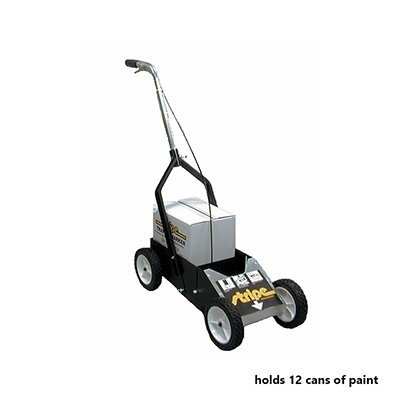

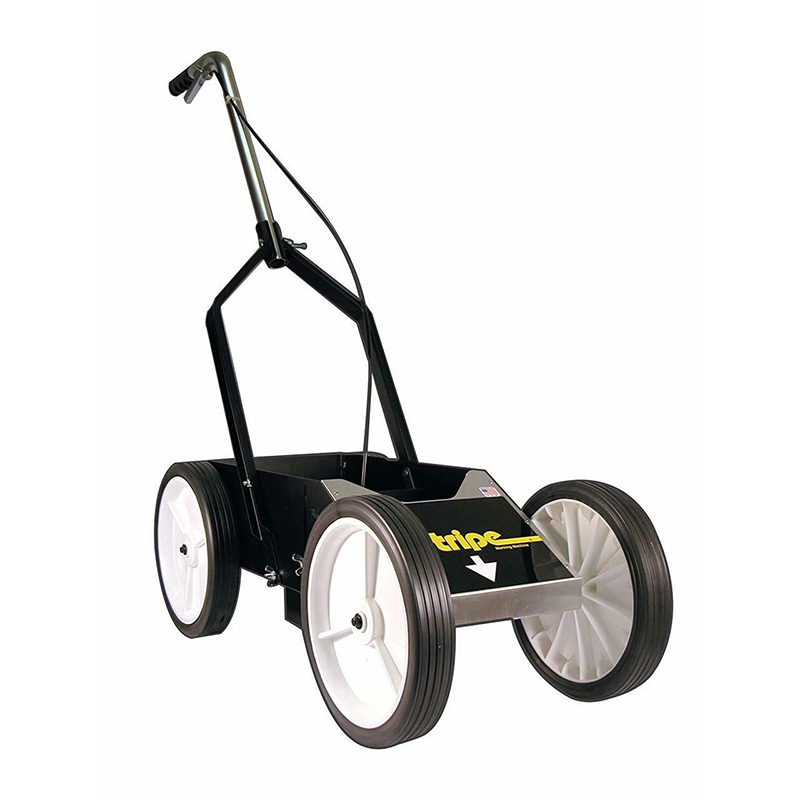

Designed exclusively for Stripe traffic marking paints, this easy to use machine applies crisp stripes to concrete or pavement. Use on parking lots, warehouses, running tracks, and playgrounds. Holds up to 12 cans for large jobs.

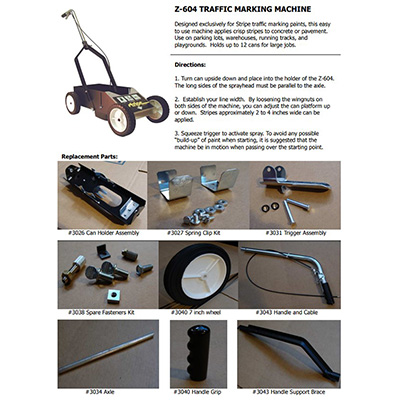

1. Turn can upside down and place into the holder of the Z-604.
The long sides of the sprayhead must be parallel to the axle.
2. Establish your line width. By loosening the wingnuts on
both sides of the machine, you can adjust the can platform up
or down. Stripes approximately 2 to 4 inches wide can be
applied.
3. Squeeze trigger to activate spray. To avoid any possible
“build-up” of paint when starting, it is suggested that the
machine be in motion when passing over the starting point.
