Octagon Rubber Base Portable Sign Stand System (30 lbs.)
Whether temporary or permanent, molded rubber sign bases are a perfect solution for increasing vehicle and pedestrian safety. Useful in parking lots, crosswalks, guard booths, malls, industrial and construction sites, or anywhere else portable signs might be needed. This octagonal sign base system is offered in various configurations. 30 lbs. base is made from 100% recycled rubber and will not chip, crack, or corrode, making it appropriate for year-round use. For high wind areas or larger signs, a 30 lbs. base extender is available for additional stability. One 30 lbs. sign base prevents more than eight tires from entering America's landfills.
Features:
- Designed to withstand high winds and extreme weather conditions and temperatures.
- Will not chip, crack, or corrode.
- For extreme wind conditions, a 30 lbs. base extender is available for additional stability.
- Easy to move, with the option of wheels for additional ease of mobility.
- Base available in 20 lbs., 30 lbs., 60 lbs., or 90 lbs.
- Optional U-channel and PVC posts available.
- Made from 100% recycled tire rubber.
- Sign not included.
- Made in USA.
Options:
Base |
Base with PVC Post |
SB30 B |

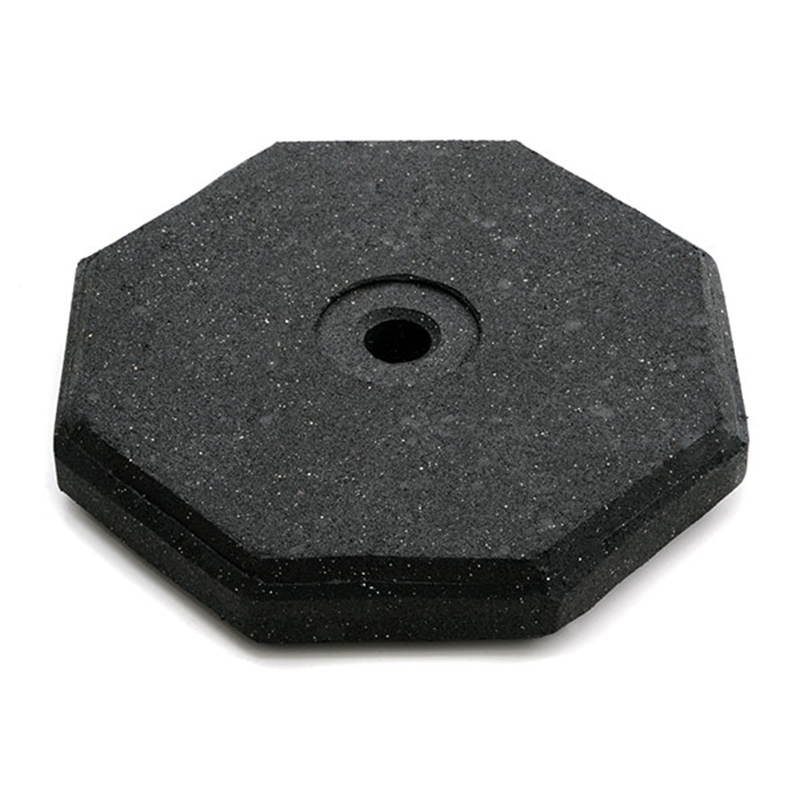

30 lbs. base with 1 7/8" molded center hole. Core base sold independently and included in all kits below. |
|

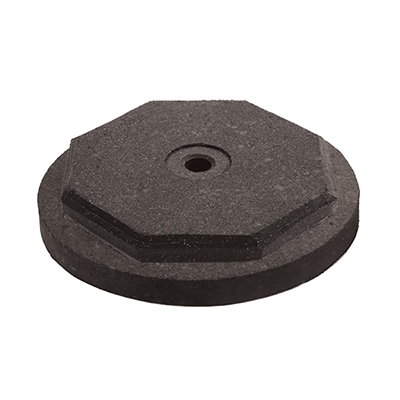

SB30 A |
30 lbs. base with 30 lbs. base extender. Circular base with octagon-shaped depression for stacking under octagonal base. Total weight of 60 lbs. for additional stability in strong winds or intense weather. |
|

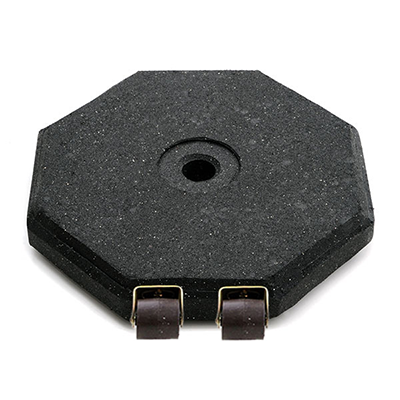

SB30 W |
30 lbs. wheeled base. Core base with 2 sturdy wheels on one side for easier moving. |
|
SB30 4 |

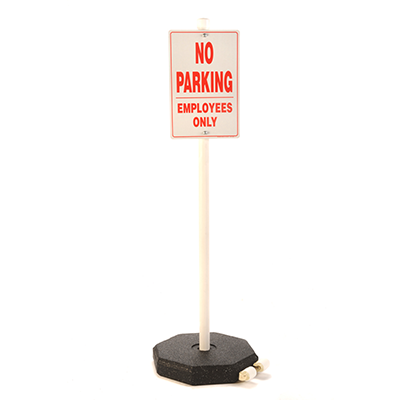

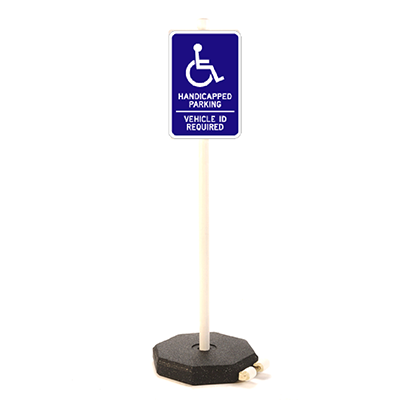

30 lbs. base with 4’ PVC post and brackets. 1.5" Diameter PVC pole is lightweight and economical. Includes 2 adjustable metal brackets to affix sign to post. |
|
SB30 5 |
30 lbs. base with 5’ PVC post and brackets. Same as SB30 4, but post is 1 foot taller. |
|
SB30 W-5 |
30 Lbs. wheeled base with 5’ PVC post and brackets. Same as SB30 W-5, but adds sturdy wheels. |
|

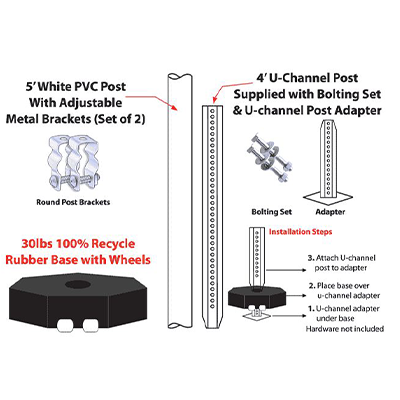

Base with U-Channel Post |

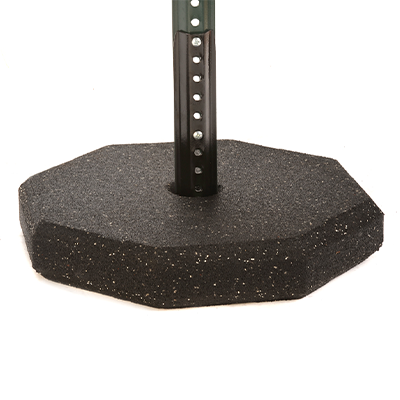

SB30 U |
30 lbs. base with U-Channel adapter. Adapter is a black post with welded square base with holes, made to anchor standard U-Channel posts. Heavy-duty steel is sturdier than PVC pole. U-Channel post not included. |
|

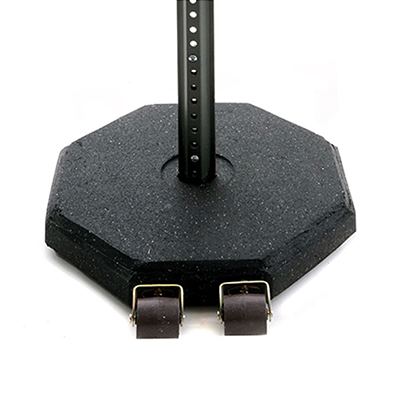

SB30 W-U |
30 lbs. wheeled base with U-Channel adapter. Adds wheels to SB30 W-U. |
|
SB30 U-5 |
30 lbs. base with U-Channel adapter and 5’ U-Channel post. Adapter is black post with welded square base with holes, made to anchor standard U-Channel posts. Included steel U-Channel post is sturdier than PVC pole. |
|

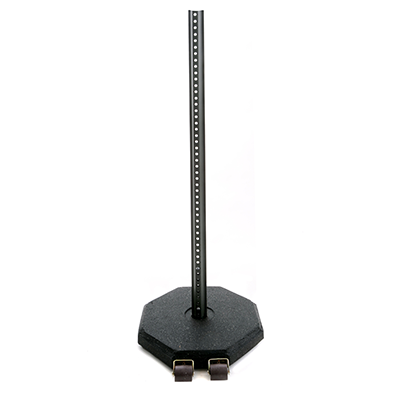

SB30 W-U-5 |
30 lbs. wheeled base with U-Channel adapter and 5’ U-Channel post. Adds wheels to SB30 U-5. |
|
Specifications:
Dimensions (base) | 18" L x 18" W x 3" H |
Dimensions (base extender) | 22" L x 22" W x 2.75" H |
Diameter (PVC) | 1.5" |
Center hole | 1 7/8" |
Weight | 30 lbs. |
Material | recycled rubber |
Shape (base) | octagonal |
Shape (base extender) | circular |
Model number | SB30 |
Specifications:
U-Channel Adaptor | Specifications | U-Channel Post |
2.25" W x 12" H | Post dimensions | 2.25" W |
3" x 3" x 1/8" | Base dimensions | N/A |
1.25 lbs. | Weight | 1.12 lbs./foot |
3/8" | Holes | 3/8" |
1" on center | Hole spacing | 1" on center |
steel | Material | steel |
