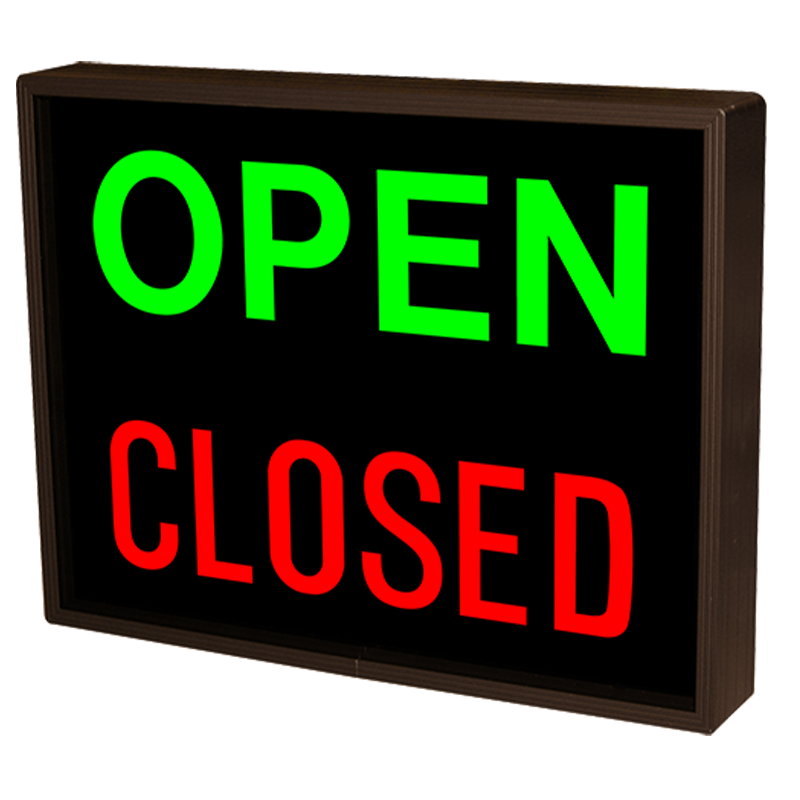

OPEN | CLOSED LED Sign (Backlit) - 14" x 18"

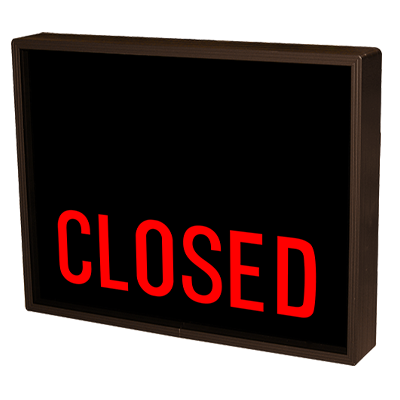

The PHX Series outdoor, blank-out LED sign is designed with high-intensity, LED backlit illumination and a block letter-style message face that is legible in direct sunlight. The sign message illuminates when turned on and blanks out (or disappears) when off. Engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum. Includes the Lift'N Shift back for wall mounting, which eliminates the need to purchase additional brackets because the sign back-panel doubles as the mounting plate.

Features:

LED message is readable in direct sunlight.
Wide-angle LEDs for maximum visibility.
Corrosion-resistant all-weather cabinet.
Housing can be used for surface mounting.
5-year warranty.
UL/cUL Listed for wet locations.
Made in the USA.

Specifications:

Overall dimensions: 14" H x 18" W x 2.5" D
Illumination: LED backlit
Input voltage: 120-277 VAC (12-24 VDC version available. Call for quote on item number 47926)
Finish: Duranodic Bronze
Weight: 7.96 lbs.
LED color: green and red
Message: OPEN | CLOSED
Character height: 3.75"
Cabinet: one-piece extruded aluminum frame
Face material: 1/8" thick dark gray diffused acrylic
Manufacturer model number: PHX1418GR-100

Optional Accessories:

Sign can be controlled by a Single Gang Switch (sold separately).

Post for LED Signs (sold separately) secures your LED sign at desired height.

OPEN | CLOSED LED Sign also available in 14" H x 18" W TCL Series direct-view option.

Resources:

OPEN | CLOSED LED Sign Specifications
PHX Series LED Sign Installation Instructions
Lift'N Shift Wall Mount Specifications

5 Year Manufacturer Warranty:

Manufacturer warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of manufacturer, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
