Elasco XtremeGuard Six Channel Heavy-Duty Cable Protector

XtremeGuard 4.5” Six-Channel Gullwing Cable Guard

Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.

Safely protect important electrical cables, water lines, hoses, and pipes in your most demanding environments with Elasco XtremeGuard Cable Protectors. Cable protectors offer 360° protection and give the user access to their cables by opening and closing the lid on top. The XtremeGuard series include the heaviest-duty cable protectors available on the market, appropriate for heavy load conditions in brutal environments. These hefty ramps are best suited for extremely demanding job sites, such as pit mines, military applications, larger construction project sites, and similar extreme environments involving movement of heavy machinery. Elasco’s premium, industrial-quality, 27.5" cable guards are made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. The XG4400 model includes four rounded 4.5" channels and two 2” channel capable of protecting a multitude of pipes or wires. Strong enough to protect cables from heavy vehicles and machinery; supports up to 40,000 lbs. per tire and total weight of 300-500 tons.

Features:

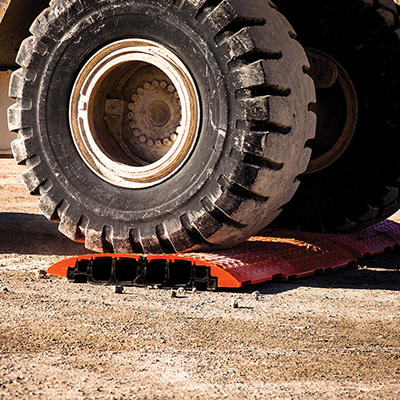

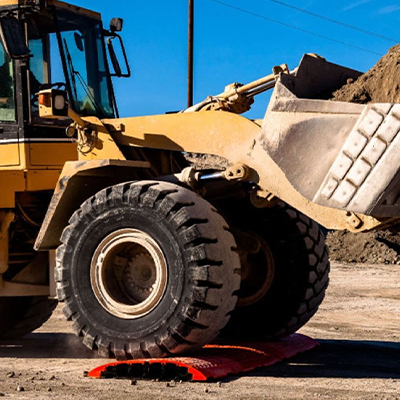

• The heaviest duty protection available from construction vehicle traffic of up to 600 tons.
• Manufactured from solid-cast polyurethane, with better strength, durability and longevity compared to rubber, plastic, and metal.

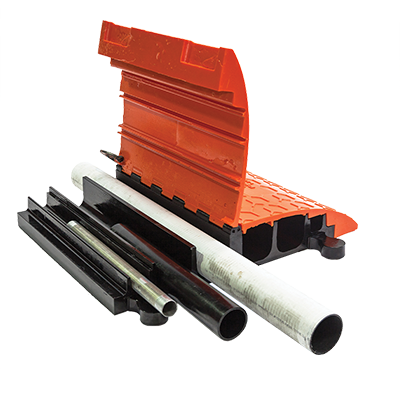

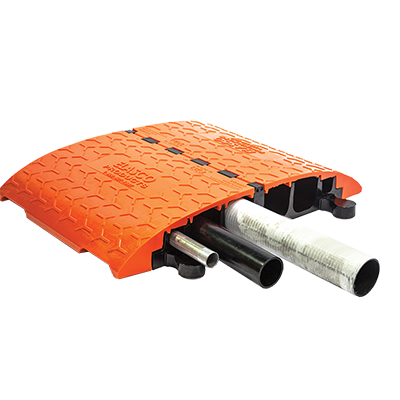

• Protects cables, pipes, and hoses under 4.5” in outside diameter.

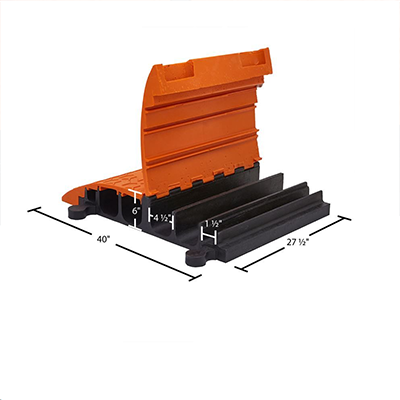

• Includes 6 channels (four 4.5” and two 2”) to accommodate multiple cables and wires, allowing segregation of cables from one another (which may be imperative based on electrical current or other requirements).
• The first gullwing lid in the industry that comes in 4.5” size channels. Able to withstand the highest load capacity available, this patented lid design (with hand-hold cutout) allows the single-sided lid to connect to the base while providing extra in-use strength.
• Reinforced fiberglass hinge pin rod provides durability and strength to lid hinge, which will never corrode, rust, or break.
• No painting or maintenance required; holds up in all weather conditions. Safely withstands extreme conditions ranging from -40℉ to 120℉.
• Non-slip surface tread design to minimize trips and falls.
• Interlocking design with connectors at both ends allows multiple cable covers to be connected to cover a larger area.
• Manufacturer lifetime warranty against defects in workmanship and materials.
• Also available in a 6 channel, double gullwing cable protector (XG2400).
• Compliant with safety regulations including NEC and OSHA.
• Made in USA.

Specifications:
