Elasco MightyGuard 3" Single Channel Heavy-Duty Cable Protector

Elasco MightyGuard 3" Single Channel Cable Guard

Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.

Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.??

Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.

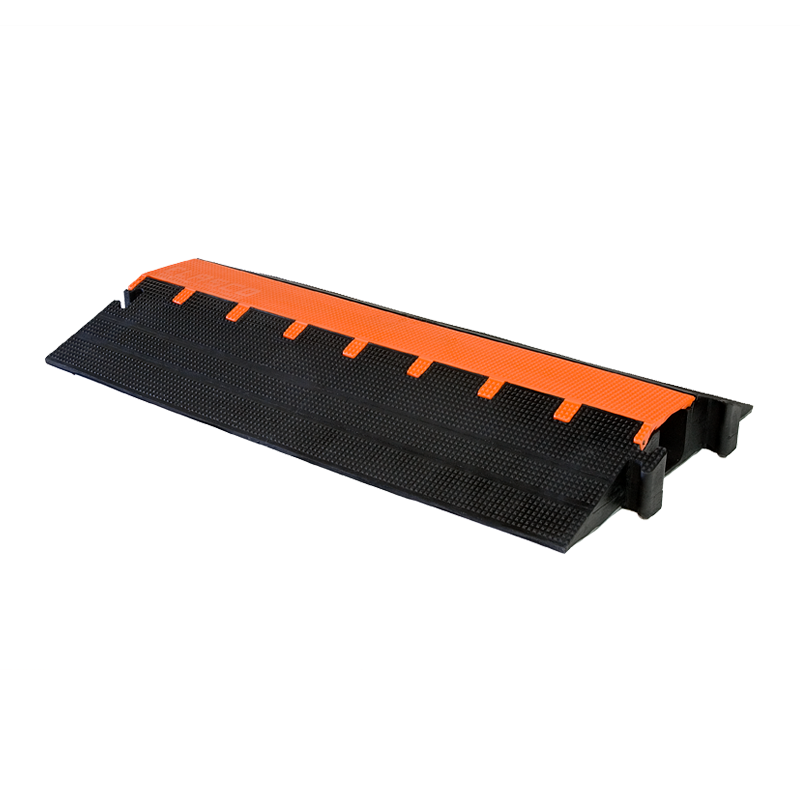

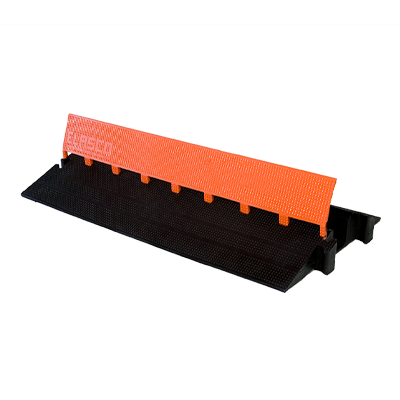

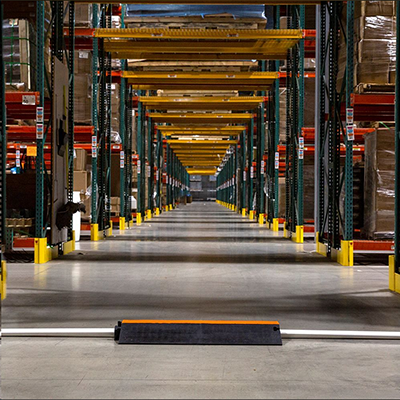

Safely protect important cables, hoses, and pipes in high traffic areas with Elasco MightyGuard Cable Protectors. Cable protectors offer 360° protection and give the user access to their cables by opening and closing the lid on top. The MightyGuard series contains heavy-duty cable protectors appropriate for pedestrian and large vehicle traffic, including medium-sized loaders, dozers, and other construction equipment. Helps prevent foot traffic from accidentally tripping over loose cables. Elasco’s premium, industrial-quality, 36" cable guards are made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. The MG1300 model includes a single rounded 3" channel capable of protecting a multitude of pipes or wires. Strong enough to protect cables from vehicle traffic, supporting up to 19,750 lbs. per tire.

Features:

• Heavy-duty protection from pedestrian and large vehicle traffic, up to 19,750 lbs. per tire.
• Manufactured from solid-cast polyurethane, with better strength, durability and longevity compared to rubber, plastic, and metal.

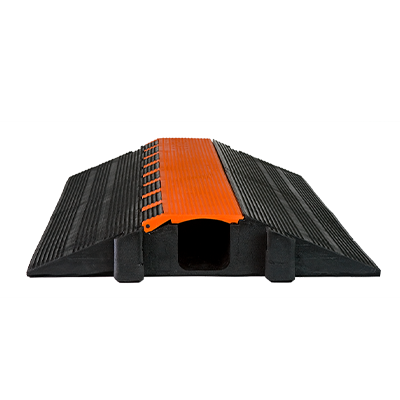

• Protects cables, pipes, and hoses under 3" in outside diameter.
• Single channel accommodates multiple cables and wires, allowing segregation of cables from one another (which may be imperative based on electrical current or other requirements).

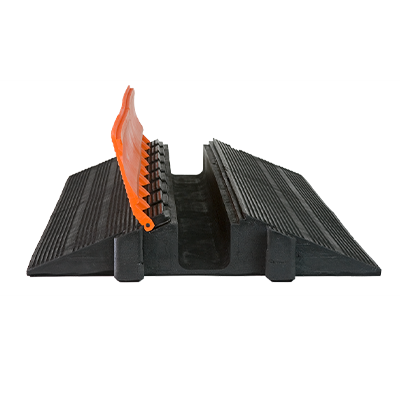

• Lid closes into the base of the product, with flush hinges, for less failure from continued use.
• Reinforced fiberglass hinge pin rod provides durability and strength to lid hinge, which will never corrode, rust, or break.
• No painting or maintenance required; holds up in all weather conditions. Safely withstands extreme conditions ranging from -40℉ to 120℉.
• Non-slip surface tread design to minimize trips and falls.
• Interlocking design with connectors at both ends allows multiple cable covers to be connected to cover a larger area.
• Manufacturer lifetime warranty against defects in workmanship and materials.
• Compliant with safety regulations including NEC and OSHA.
• Made in USA.

Specifications:

Resources:

MightyGuard Series Cable Protectors:

	Item Number	Dimensions	Maximum Capacity	Channels	Channel Dimensions
	MG1200	36" L x 14" W x 2.5" H	19,000 lbs. per tire	1	2"

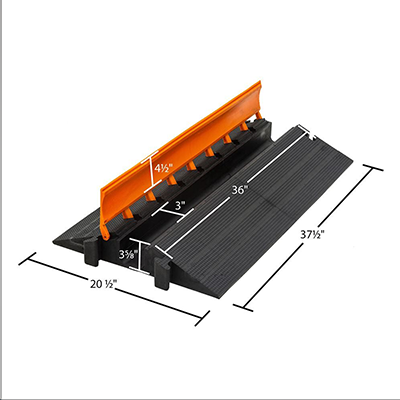

	MG1300	36" L x 20.5" W x 3.5" H	19,750 lbs. per tire	1	3"
	MG2200	36" L x 16.5" W x 2.5" H	16,500 lbs. per tire	2	2"
	MG2300	36" L x 24" W x 3.5" H	12,250 lbs. per tire	2	3"
	MG3200	36" L x 19" W x 2.5" H	12,250 lbs. per tire	3	2"
	MG3300	36" L x 27.5" W x 3.75" H	12,250 lbs. per tire	3	3"
	MG5200	36" L x 24" W x 2.5" H	15,750 lbs. per tire	5	2"

Cable Protectors vs. Dropovers

Cable Protectors	Dropovers
360° protection of cords & pipes	Protects from the top only; no bottom protection (sufficient for grass, sand, or similar, soft or non-abrasive surfaces)
More flexibility on an uneven surface	For flatter surfaces
More involved installation as cables must be laid into protector	Quick installation - simply “drop” the unit over cords
Easy access to cords & cables by opening lid on top	Need to lift dropover up to access cords & cables
Heavier load bearing	Typically for lighter duty protection
Offer multiple channels to segregate lines or cables from one another	Single channel
