Vendor Elasco Products |
Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.

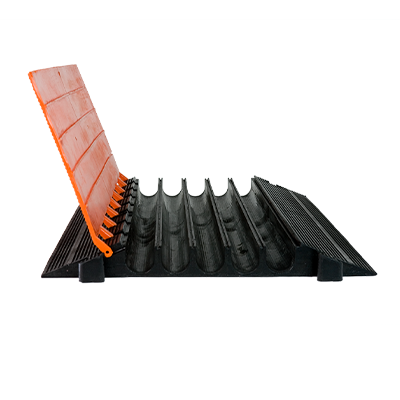

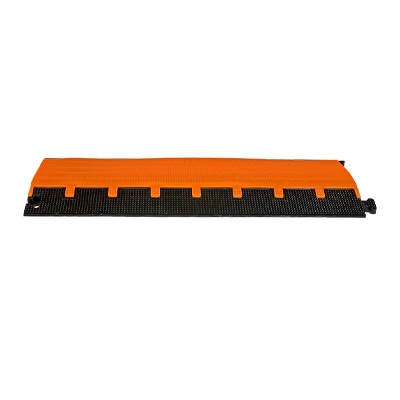

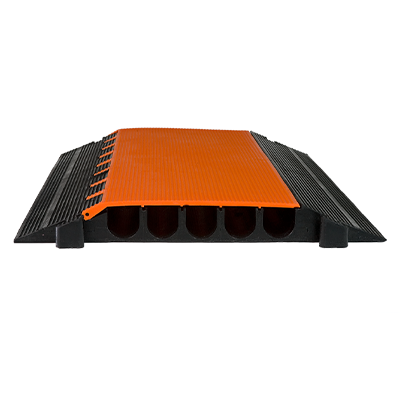

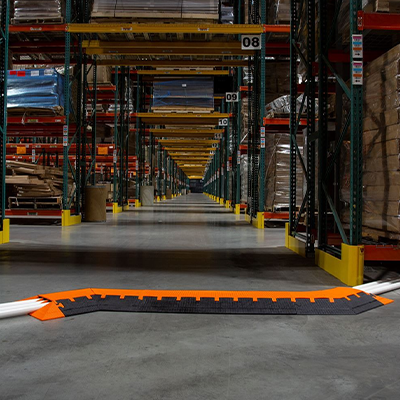

Safely protect important cables, hoses, and pipes in high traffic areas with Elasco MightyGuard Cable Protectors. Cable protectors offer 360° protection and give the user access to their cables by opening and closing the lid on top. The MightyGuard series are heavy-duty cable protectors appropriate for pedestrian and large vehicle traffic, including medium-sized loaders, dozers, and other construction equipment. Helps prevent foot traffic from accidentally tripping over loose cables. Elasco’s premium, industrial-quality, 36" cable guards are made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. The MG5200 model includes five rounded 2" channels capable of protecting a multitude of pipes or wires. Add 4-way intersections and left or right-angled units (sold separately) for added route flexibility. Strong enough to protect cables from vehicle traffic, supporting up to 15,750 lbs. per tire.

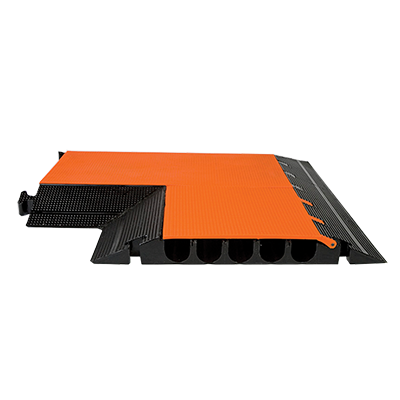

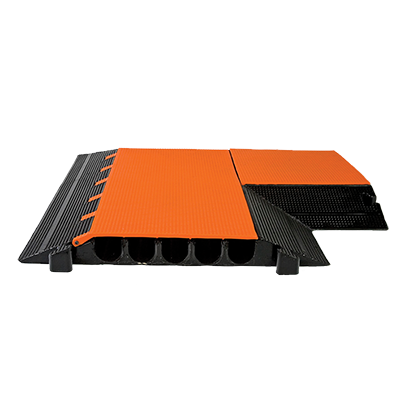

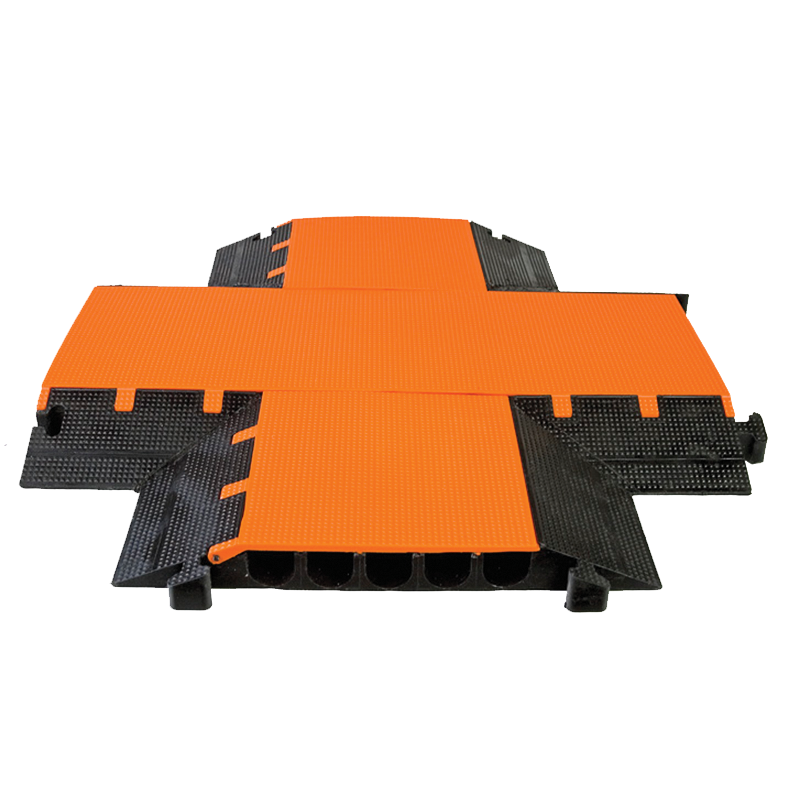

Accessories for the MG5200 model of the MightyGuard series allows cable turns and 4-way intersections to be protected as well. Interlocking design allows these 4 options to be connected in the configuration that best suits your needs. Choose from: 90° left turn, 90° right turn, and 4-way intersection (each sold separately).
|
|
|
|
|
|---|---|---|---|---|
| Component | primary unit | 90° left-angle | 90° right-angle | 4-way intersection |
| Model number | MG5200 | MG5200-90L | MG5200-90R | MG5200-X |

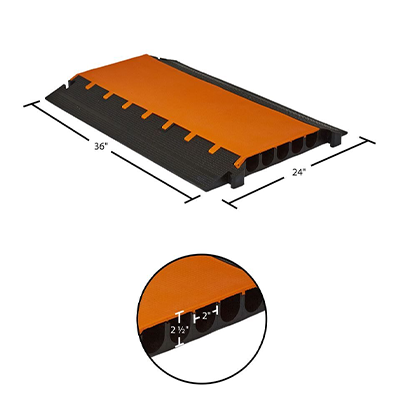

| Dimensions (all 2.5" H) | 36" x 24" | 30" x 30" | 30" x 30" | 36" x 36" |
| Weight | 35 lbs. | 35 lbs. | 35 lbs. | 40 lbs. |
| Material | polyurethane | |||
| Maximum capacity | 15,750 lbs. per tire | |||
| Number of channels | 5 | |||
| Outside diameter | 2" | |||
| Channel dimensions | 2" x 2" | |||
| Item Number | Dimensions | Maximum Capacity | Channels | Channel Dimensions | |
|---|---|---|---|---|---|
|
MG1200 | 36" L x 14" W x 2.5" H | 19,000 lbs. per tire | 1 | 2" |
|
MG1300 | 36" L x 20.5" W x 3.5" H | 19,750 lbs. per tire | 1 | 3" |
|
MG2200 | 36" L x 16.5" W x 2.5" H | 16,500 lbs. per tire | 2 | 2" |
|
MG2300 | 36" L x 24" W x 3.5" H | 12,250 lbs. per tire | 2 | 3" |
|
MG3200 | 36" L x 19" W x 2.5" H | 12,250 lbs. per tire | 3 | 2" |
|

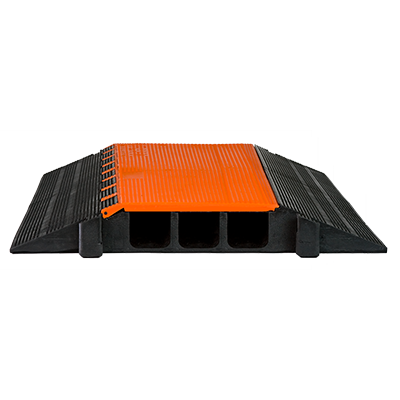

MG3300 | 36" L x 27.5" W x 3.75" H | 12,250 lbs. per tire | 3 | 3" |
|
MG5200 | 36" L x 24" W x 2.5" H | 15,750 lbs. per tire | 5 | 2" |
| Cable Protectors | Dropovers |
|---|---|
|
|
| 360° protection of cords & pipes | Protects from the top only; no bottom protection (sufficient for grass, sand, or similar, soft or non-abrasive surfaces) |
| More flexibility on an uneven surface | For flatter surfaces |
| More involved installation as cables must be laid into protector | Quick installation - simply “drop” the unit over cords |
| Easy access to cords & cables by opening lid on top | Need to lift dropover up to access cords & cables |
| Heavier load bearing | Typically for lighter duty protection |
| Offer multiple channels to segregate lines or cables from one another | Single channel |
