Double Gang Switch (1-SPST) (1-SPDT)

Double Gang Switch (1-SPST) (1-SPDT)

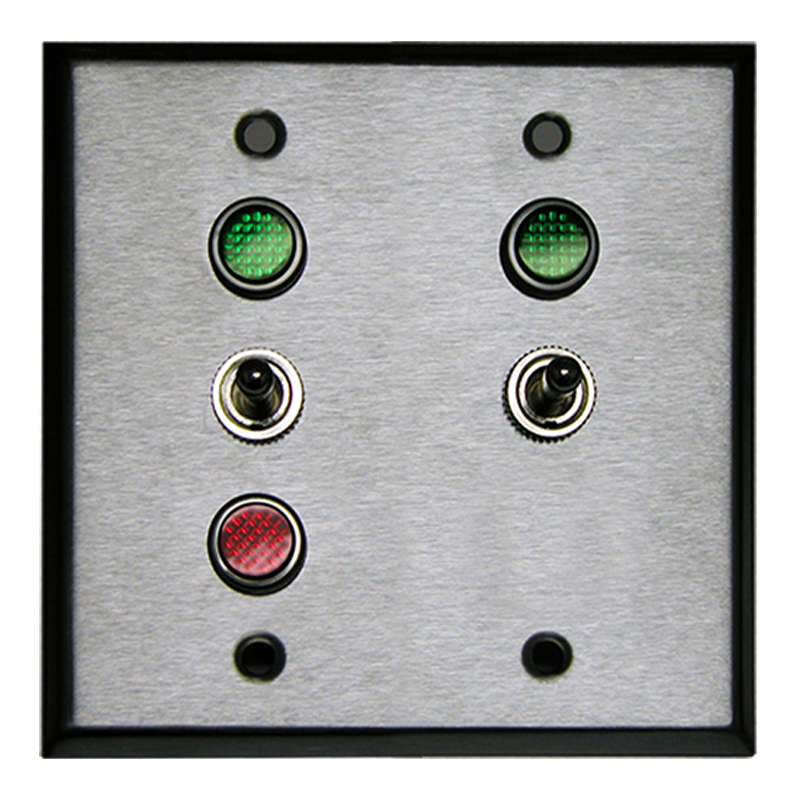

Double gang switch assembly with indicator lights and brushed, stainless-steel cover plate. (1) 2-position SPST On/Off switch(es) and (1) 3-position SPDT On/Off/On switch(es). Pre-wired and ready to install.

For Use With:

Specifications:

• Finish: brushed stainless steel
• Weight: 0.241 lbs.
• Dimensions: 4.5" H x 4.5" W x 1" D
• Input voltage: 120VAC (12-24 VDC version available. Call for quote on item number 42469)
• Manufacturer model number: DG32 SPDT/120VAC
• Not included: electrical box (needed to house the switch and plate). Available locally. Shown in above pictures as a black border around the metal plate.

Resources:

About Controller Switches:

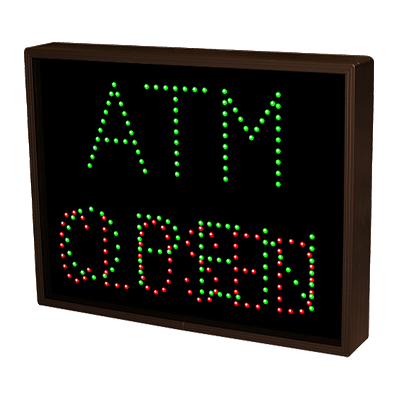

Controller Switches have stainless steel plates with a toggle switch and indicator lights. Each toggle switch is offered in two styles: a simple 2 position On/Off switch or a 3 position On/Off/On Switch. A two-position switch would be used on a single message sign, such as "ATM." The three-position switch message would control a double message sign, such as "Open | Closed". A Gang refers to a single toggle switch and its indicator lights.

5 Year Manufacturer Warranty:

Manufacturer warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of manufacturer, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
