Aluminum Compact Single Spring Sign Stand (for Roll-Up Signs)

Aluminum Compact Single Spring Sign Stand (for Roll-Up Signs)

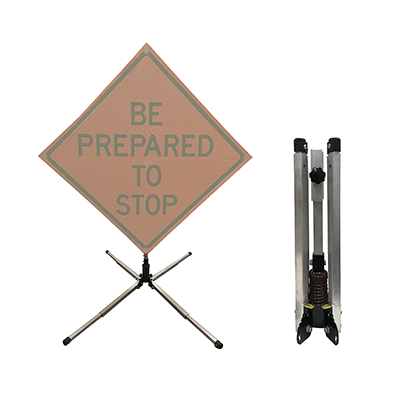

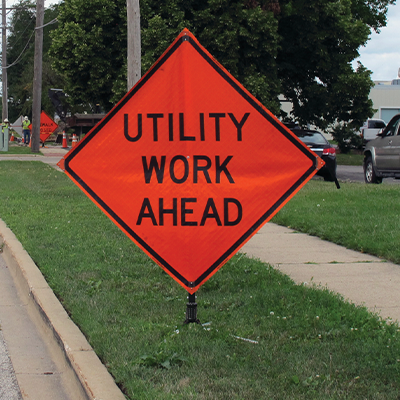

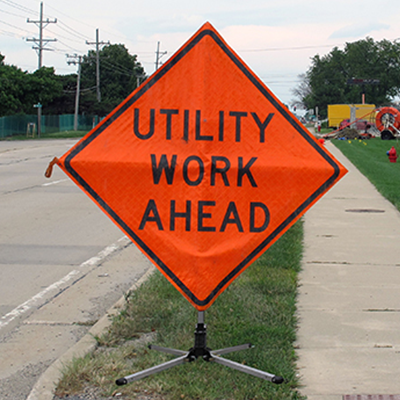

This Watchdog™ heavy duty aluminum sign stand is lightweight, compact, and holds 36” and or 48” roll-up signs. The single, heavy-duty, automotive grade spring helps to provide stability in windy conditions by allowing the mast to flex as the wind hits the sign. Aluminum legs lock in multiple positions to accommodate uneven ground and sidewalks. Easy to deploy and set up signs for temporary warnings, danger areas, and construction zones. Designed for use along streets, roadways, and highways where wind loads are high with passing high-speed traffic.

Features:

• Holds 36” & 48” roll-up signs (sold separately).
• Automotive grade steel spring designed to perform in extreme weather conditions without fatiguing or breaking.
• Spring E-coated for maximum rust and corrosion resistance.

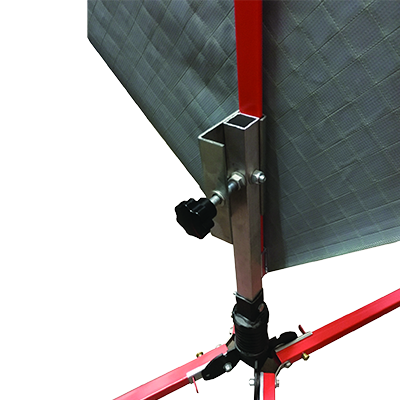

• Universal compact sign clamp, made of zinc-plated steel, grabs and tightens on roll-up rib.

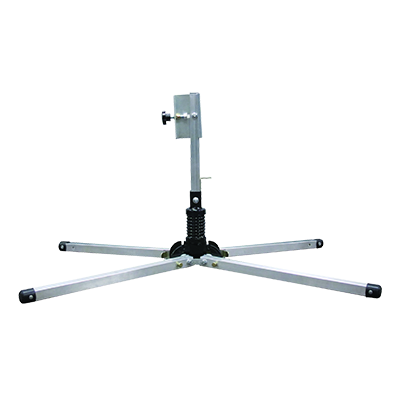

• Legs are extendable and lock in multiple positions to adjust to uneven ground.
• Non-skid rubber feet.
• MASH Accepted for 48” roll-up signs, WZ-429.
• Meets MUTCD Standards.

Options:

• Available in Orange Powder-Coated Steel for a more colorful presentation.

Specifications:

Resources:

Additional Information:

1. Extend telescoping legs until locked in place.
2. Release leg lock mechanism and lower legs to ground.
3. Lift up on center upright until legs lock in place.
4. Insert panel into upright holder until spring button snaps in place.

1. Depress spring button and remove panel.
2. Release leg lock mechanism and raise legs.
3. Depress spring buttons and telescope legs.

Watchdog Sign Stand Comparison:

Model	SSRB800	SS100	SS105	SS300	SS300A	SS310	SS310A	SS340A	SS410A	SS420A
Springs	No	No	No	No	No	Single	Single	Double	No	Double
Sign Height	13"	14"	14"	13"	13"	13"	13"	16"	60"	18"
Top of Sign	81"	81"	81"	82"	82"	82"	82"	82"	128"	86"
Holds Roll-Up Sign	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	No
Holds Rigid Sign	No	Yes (5/8" plywood)	Yes (5/8" plywood)	No	No	No	No	No	No	Yes (.080 aluminum)
Leg Material	Rubber base	Galvanized steel	Orange powder-coated steel	Aluminum	Orange powder-coated steel	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
3-Flag Holder	No	Yes	Yes	No	No	No	No	No	Yes	Yes
