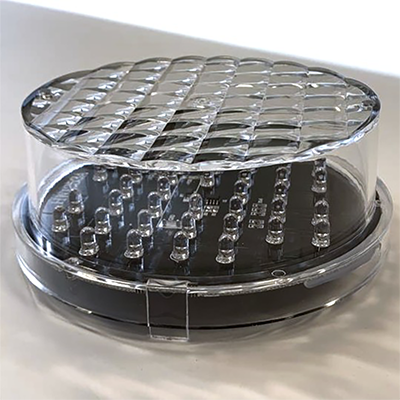

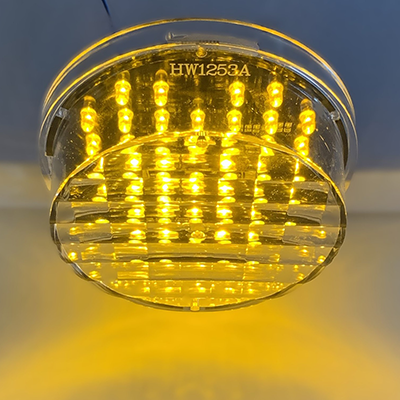

Arrow Board Replacement Light Bulb (PAR46)

Our arrow board PAR46 replacement light bulbs are standardized to fit most made arrow boards used in North America. These best-selling replacement bulbs are quality and reliable arrow board lights.

Features:

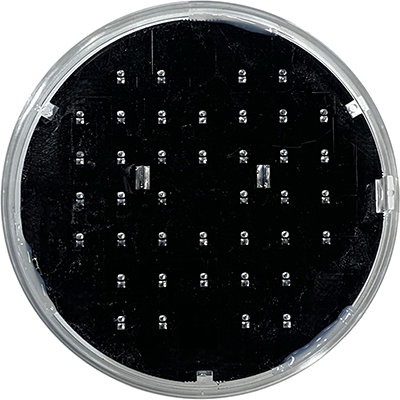

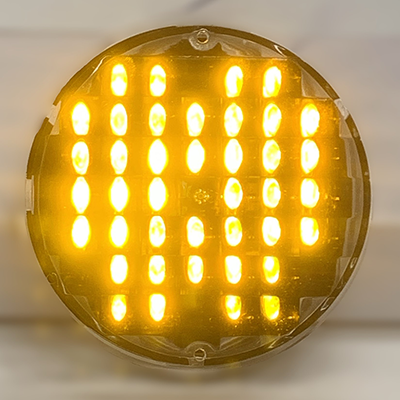

40 bright LEDs.
Visibility of 1 mile (meets MUTCD standards for PAR46/Type B & C).
Integrated acrylic lens that enhances brightness and angularity of each LED while reducing power consumption.
Fits arrow boards 36” x 72” and 48” x 96” (MUTCD Type B & C).

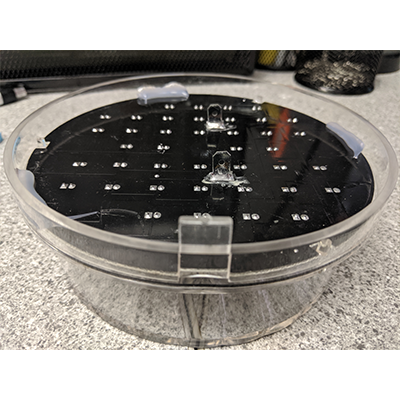

Connect 2 wires (1 positive & 1 negative) from arrow board to back of each bulb.
Replacement lamps and hoods can be installed within minutes with a Phillips screwdriver.
Recommended to change all bulbs at same time, as old bulbs may be less bright than new bulbs due to dirt accumulation on lens during outdoor use.

Specifications:

We carry two shapes and multiple colors of arrow board bulbs; please refer to the chart below to make sure you are ordering the correct bulb:

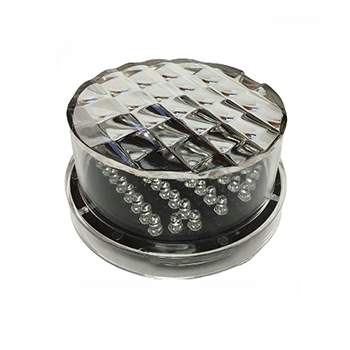

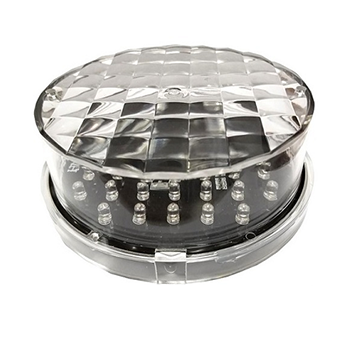

	SAB-PAR36	SAB-PAR46
Bulb shape	PAR36	PAR46
MUTCD Arrow Board	Type B	Type B & C

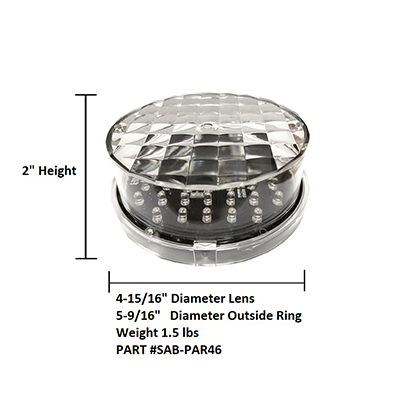

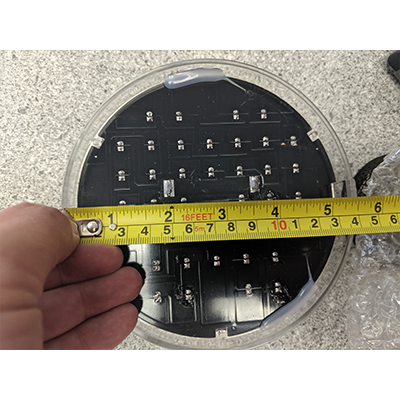

Outside ring diameter	4-3/8”	5-9/16”
Lens diameter	3-3/4”	4-15/16”
Height	2-1/16"	2"
Weight	1 lbs.	1.5 lbs.
LED quantity	50	40
Max brightness	650 cd	850 cd
Optional hood	SAB-LC36	SAB-LC46
Color (light)	amber	amber, green, red
Color (case)	clear
Material	acrylic

Resources:

Arrow Board Bulb and Hood Cover Specifications

Compatibility:

Our bulbs are compatible with nearly every arrow board sold in the U.S. Our bulbs work with arrow boards that work on a negative polarity - meaning the bulb has constant positive power to them and the switch to make them turn on and off is the negative contact.
Our bulbs are not compatible with the Low Profile Directional Display™ Arrow Boards manufactured by National Signal Incorporated (they work in reverse polarity to the description above).
Our bulbs are brighter than the bulbs used in Ver-Mac brand Arrow Boards, so if only replacing a few bulbs, they will display with different levels of brightness.
