Elasco UltraGuard 1.38" Five Channel Heavy-Duty ADA Cable Protector Ramp

Please note this manufacturer is experiencing stock issues; lead times may be extended beyond dates provided in quotes.

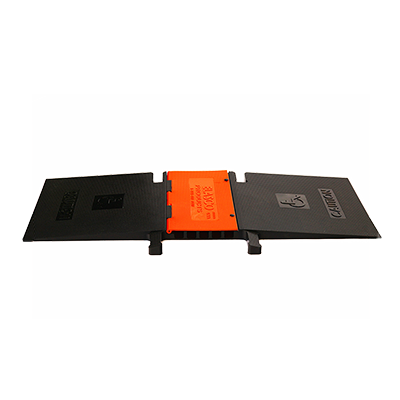

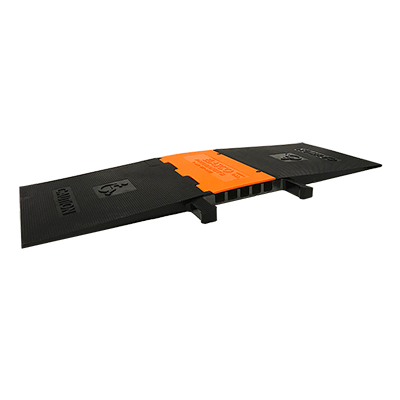

With ADA-compliant ramps on either side of the UG5140ADA cable protector, wheelchairs, scooters, and other mobility devices will roll over your cords without impediment. When crossing over walkways at venues, festivals, and work zones, pedestrian traffic will be accommodated according to ADA standards for accessible design. Safely protect important cables, cords, hoses, and pipes in high traffic areas with Elasco UltraGuard Cable Protectors. Cable protectors offer 360° protection and give the user access to their cables by opening and closing the lid on top. The UltraGuard series contains versatile, heavy-duty, low-profile cable ramps appropriate for pedestrian and vehicle traffic, including larger vehicles, and medium-sized construction equipment. Helps prevent wheelchair and foot traffic from accidentally tripping over loose cables. This premium, industrial-quality 36” cable guard is made from solid-cast polyurethane, which is stronger and more durable than typical injection-molded polymers because the hot-cast process provides a long, slow cure and post-cure that enhances the cross-linking of the polyurethane molecule. Strong enough to protect cables from vehicle traffic, supporting up to 20,000 lbs. per tire.

Features:

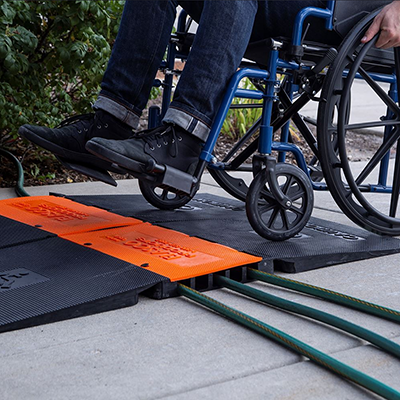

ADA-compliant; wheelchairs, scooters, and other mobility devices roll over without impediment.
User-friendly incline (1:12 slope).

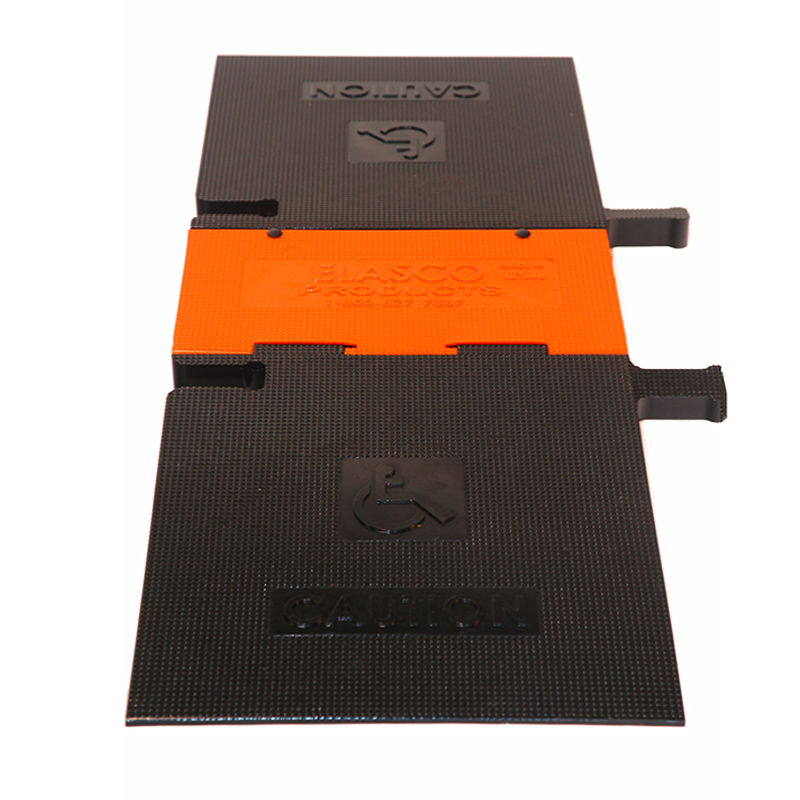

Molded-in wheelchair accessible icon.
Heavy-duty protection from pedestrian and large vehicle traffic, up to 20,000 lbs. per tire.
Manufactured from solid-cast polyurethane, with better strength, durability and longevity compared to rubber, plastic, and metal.

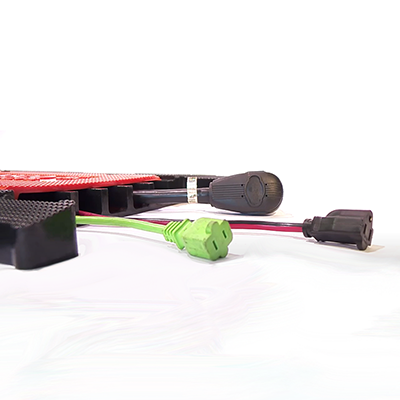

Protects cables, pipes, and hoses under 1.38" in outside diameter.

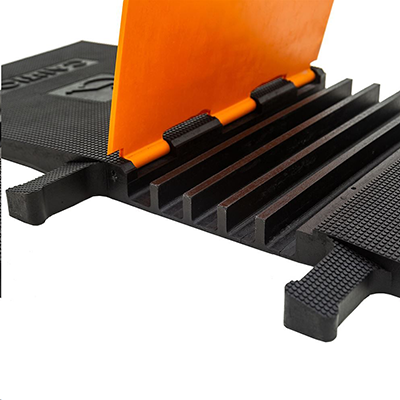

Includes 5 square channels to accommodate multiple cables and wires, allowing segregation of cables from one another (which may be imperative based on electrical current or other requirements).

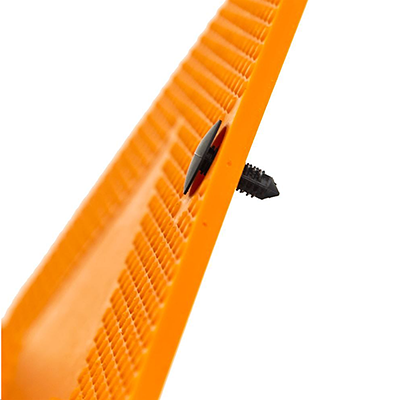

Unique push-button lid design secures the lid down into the base to prevent it from curling up and becoming a trip hazard or releasing cables.
No painting or maintenance required; holds up in all weather conditions. Safely withstands extreme conditions ranging from -40 degrees F to 120 degrees F.
Non-slip surface tread design to minimize trips and falls.

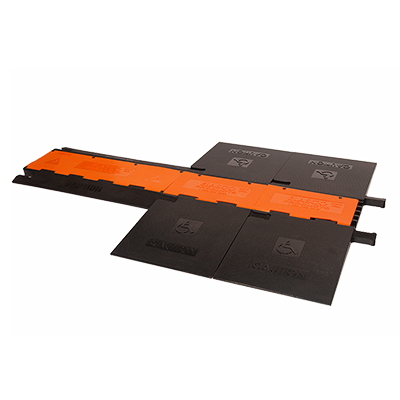

Interlocking design with connectors at both ends allows multiple cable covers to be connected to cover a larger area or move around obstacles.
Compatible with UG5140 model (to extend length of cable protector), which also offers left and right-angled units and end caps.
Manufacturer lifetime warranty against defects in workmanship and materials.
Compliant with safety regulations including NEC and OSHA.
Made in USA.

Specifications:


Component	primary unit	primary unit with glow	ADA compliant unit	45° left-angle	45° right-angle	end cap
Model number	UG5140-36	UG5140-GLOW	UG5140ADA	UG5140-45L	UG5140-45R	UG5140-ED

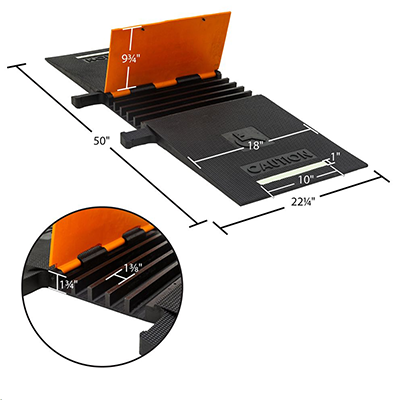

Dimensions (all 1.75” H)	36" x 24"	36" x 24"	36" x 20"	26" x 25"	26" x 25"	7.75" x 20"
Weight	24 lbs.	24 lbs.	24 lbs.	14 lbs.	14 lbs.	10 lbs.
Material	polyurethane
Maximum capacity	20,000 lbs. per tire
Number of channels	5
Outside diameter	1.38”
Channel dimensions	1.38” x 1.38”
