ADA Pathcade™ Barricade System

The ADA Pathcade Barricade System is a versatile barricade and channelizer product with multiple uses, including:

Continuous ADA compliant pathway
Continuous crowd control barrier
On the road as a longitudinal channelizing device
On a construction site to wall off the area

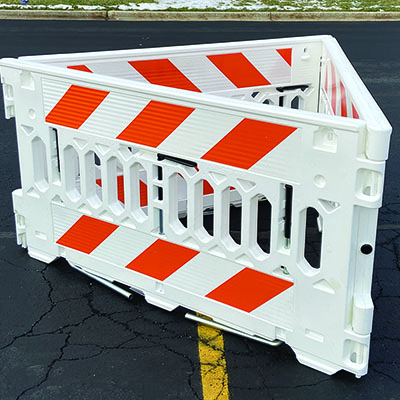

High visibility manhole guard

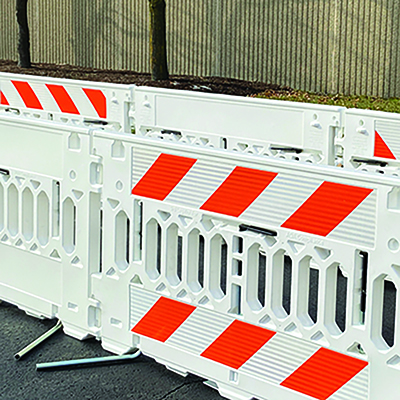

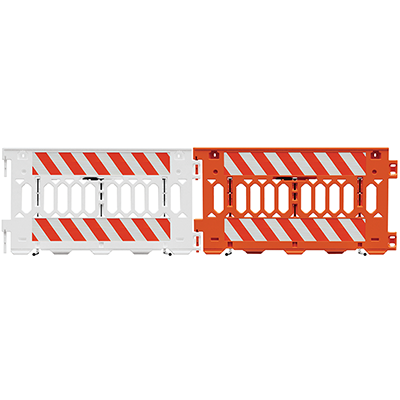

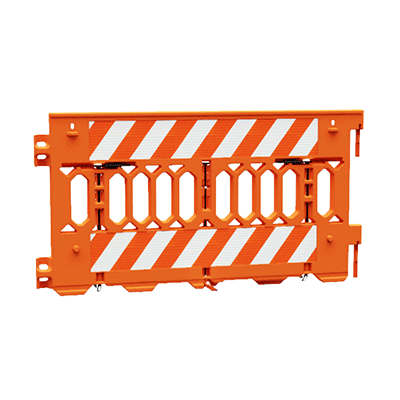

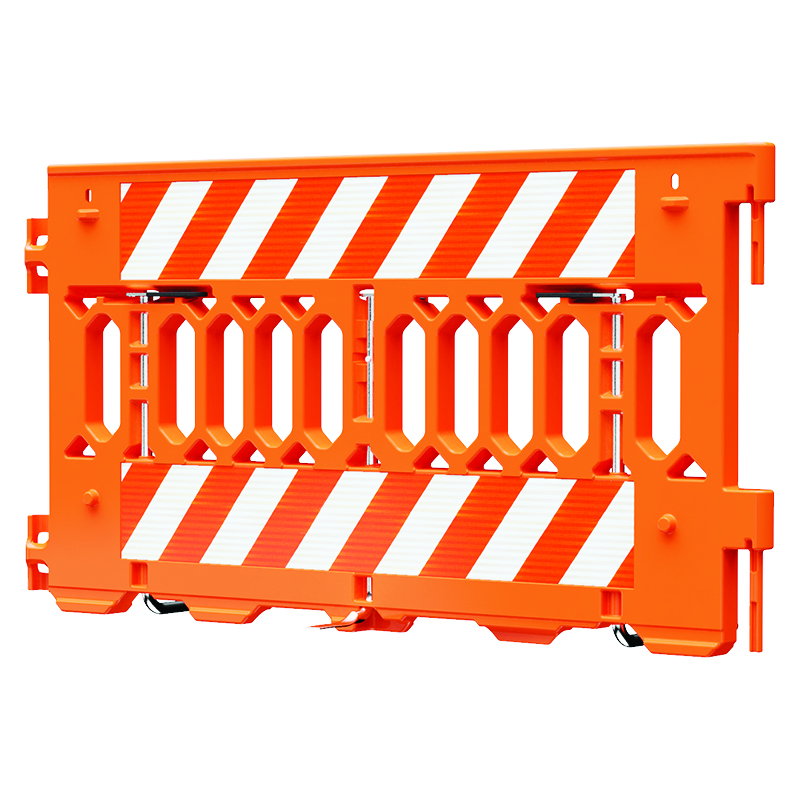

The modular system can be shaped to any layout. The Pathcade is available in 2 colors, orange or white. Available without sheeting, or with your choice of 3M™ sheeting grade and placement locations. Proprietary tripod leg design utilizes two legs on one side of the barricade that utilize sandbags, and a third anti-trip leg on the other side.

Meets ADA compliance and guidelines:

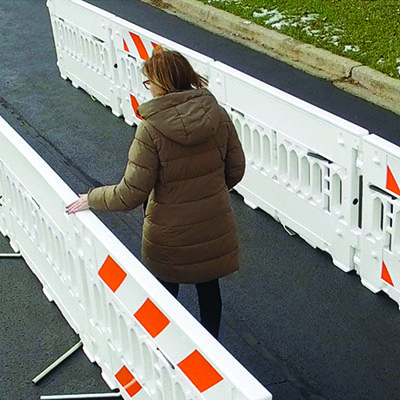

Pathways created with the Pathcade Barricade System meet ADA compliance in multiple ways:

Barricade is completely vertical, eliminating any obstructions in the pathway,
Barricade has a continuous handrail, so pedestrians can easily guide along the pathway, and
Barricade has a continuous base that is flush with the ground, so the visually impaired can navigate the pathway with a cane.
To create an ADA accessible pathway, deploy only the two longer feet (not the third anti-trip foot) and secure with sandbags.

Features:

Rounded edge on top of panel for a smooth, comfortable guardrail.
Barricade can pivot up to 120 degrees to shape to any layout.
Dual post connectors for smooth connecting system.
Recessed panels on both sides can be customized with retroreflective sheeting or legends.

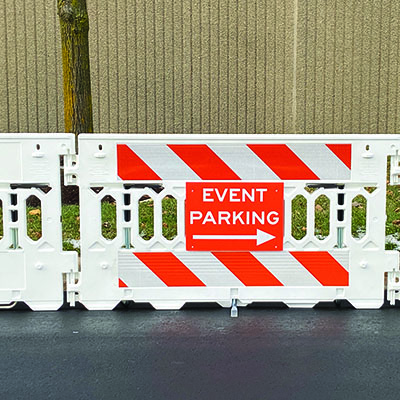

Mounting holes in the middle of barricade for signage (signs sold separately).
Legs made of hot dipped galvanized steel that won't rust or corrode.

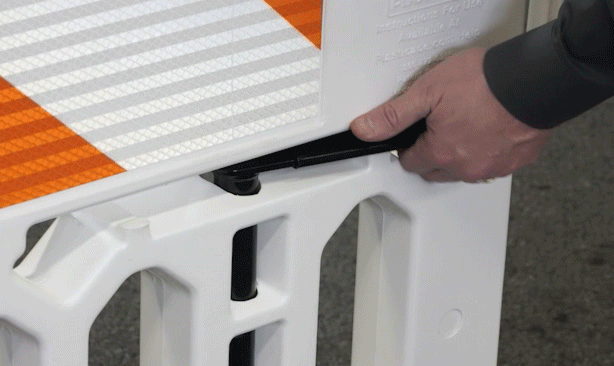

Unique easy handle turn deploys barricade legs.

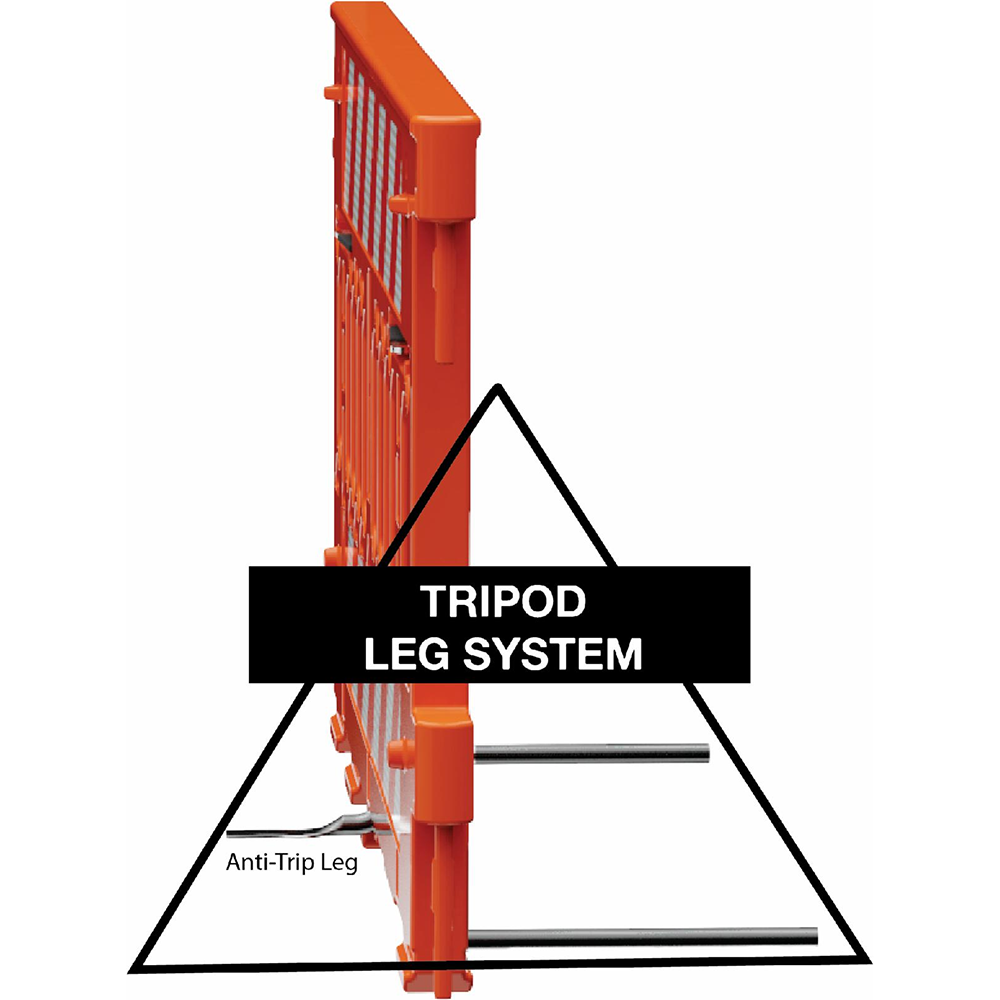

Exclusive tripod leg system; no sandbags needed when using all 3 legs.
Light shelves for 2 standard barricade lights (lights sold separately).
Stacking lugs allow 19 barricades per pallet.
MASH Accepted WZ-428.
Meets MUTCD standards.
Made in USA.

Options (Call for pricing not shown above):

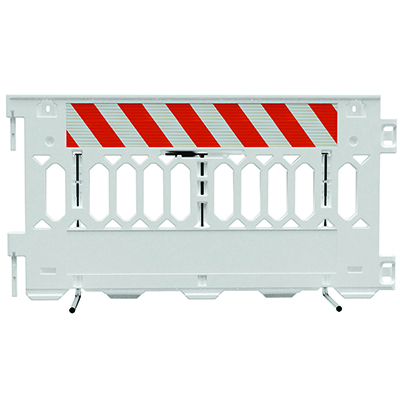

Color: orange or white, with or with out top left directional high prismatic reflective stripes.
Sheeting locations: top, bottom, both.
Sheeting directions: left stripes, right stripes.

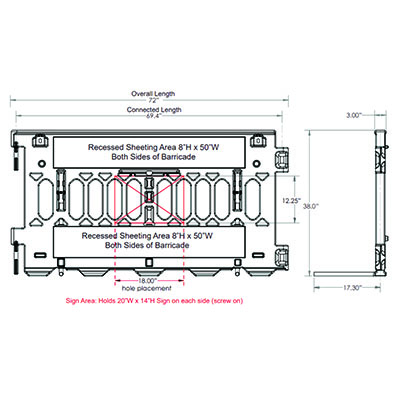

Specifications:

Length	72” (Connected length: 69.4”)
Height	38”
Depth	3”
Weight	31 lb.
Body material	polyethylene
Leg material	hot dipped galvanized steel
Sign area	holds 20" W x 14" H sign on each side (signs sold separately)
Sheeting area	four recessed areas, two on each side of panel, 8" x 50" each
Ships via	LTL (call for quote)

Resources:

Plasticade Pathcade Product Flyer
Plasticade Pathcade Product Instructions

Plasticade Crowd Control Barricade Comparison Chart:


Description	Crowdcade Plastic Barricade	Crowdcade Deluxe Plastic Barricade	ADA Pathcade Barricade System	Strongwall ADA Pedestrian Barricade and Channelizer
Item Number	2004	2007	2008	CSP-SW38
Connected Length	6'	7'	5.8'	3.4'
Dimensions	74” L x 39.5” H	86.25” L x 42” H	72” L x 38” H	38” H x 15.25” W (with base)
Leg Material	recycled rubber	powder-coated steel	hot-dipped galvanized steel	PVC plastic (sold separately)
Weight	32 lbs.	35 lbs.	31 lbs.	51 lbs. (with base)
ADA Compliant	No	No	Yes	Yes
Quick Change Sign System	No	No	Yes	n/a
Sign Area	24" W x 18" H or larger	29.5” W x 26” H or larger	20" W x 14" H	n/a
